AWS Secrets Manager

Instructions for Configuring AWS Secrets Manager for Use with InsightCloudSec

InsightCloudSec requires the use of AWS Secrets Manager to authenticate into an external database in RDS, as well as the Redis instance in ElastiCache (details are included below.)

This feature necessitates customers create a Secret in Secrets Manager containing the credentials of the RDS instance hosting the database for InsightCloudSec/Elasticache, hosting the Redis data for InsightCloudSec, and for InsightCloudSec to pull credentials using the AssumeRole functionality.

*Note: The specific steps provided on this page apply to self-hosted customers. For hosted customers we recommend that you contact your CSM or contact us through the Customer Support Portal.

Prerequisites for RDS

To use Secrets Manager authentication for your RDS database, you will need the following:

  • An RDS Database with a divvy and divvykeys database
  • EC2 instances that have an attached role with at least basic user permissions in addition to secretsmanager:GetSecretValue to access the secrets in Secrets Manager
  • A properly configured prod.env file on each instance running InsightCloudSec

Prerequisites for ElastiCache

To use Secrets Manager authentication for your ElastiCache instance, you will need the following:

  • An ElastiCache instance
  • EC2 instances that have an attached role with at least basic user permissions in addition to secretsmanager:GetSecretValue to access the secrets in Secrets Manager
  • A properly configured prod.env file on each instance running InsightCloudSec

📘

Value Names (DivvyCloud vs. InsightCloudSec)

Some values specified on this page use our former product name (DivvyCloud vs. InsightCloudSec).

Updates to the naming of these configuration components will be communicated when changes are made.

Steps for Using Secrets Manager

1. To access the Secrets Manager, login to the AWS console, as an Admin, in the account where your RDS database exists and navigate to its region.

2. Select Store a new secret.

  • To create a Secret manually, follow these steps.
  • If you create a Secret with RDS, e.g., when using Cloudformation, verify the Secret naming and key conventions match the pattern below.
13551355

Store a new secret

3. Select your secret type. You'll also need to select the instance of the database your secret will access.

  • Specify the User Name and password to be stored in this secret (both User Name and password for the database can be found in the current prod.env file, as described below)
  • Select "Next" (lower right of the screen)
14341434

RDS Secret Creation

4. Store a new secret. Give your Secret a useful name, e.g., insightcloudsec-credentials, and an (optional) description. Make note of this name for use in later steps.

❗️

Secret Creation

If you delete your Secret, you cannot create a new Secret with the same name in the same region for a minimum of seven days. Use "edit" to modify your Secret rather than replacing it.

16801680

Store a new secret

5. To configure automatic rotation, select "Disable automatic rotation" and select "Next".

If you'd like to set up automatic rotation, you will have to set up an AWS Lambda function to handle this for your secrets as well as RDS databases.

17071707

Disable automatice rotation

6. Review what you've done so far. If everything looks ok, select "Store" (bottom right).

16781678

Store a new secret

7. Return to the the list of secrets and select your newly added secret.

16561656

Select your new secret

8. Add the following secret keys and values. Most of these values will be present by default; you MUST add the last one, secret_dbname with a value of divvykeys. Select "Edit" to add/change values.

  • username with the value of divvy
  • password with the value of the password you specified on the database
  • host with the value of your RDS endpoint
  • port with the value of the port you set on RDS (default 3306)
  • dbname with the value of divvy
  • secret_dbname with the value of divvykeys
13941394

Adding keys and values

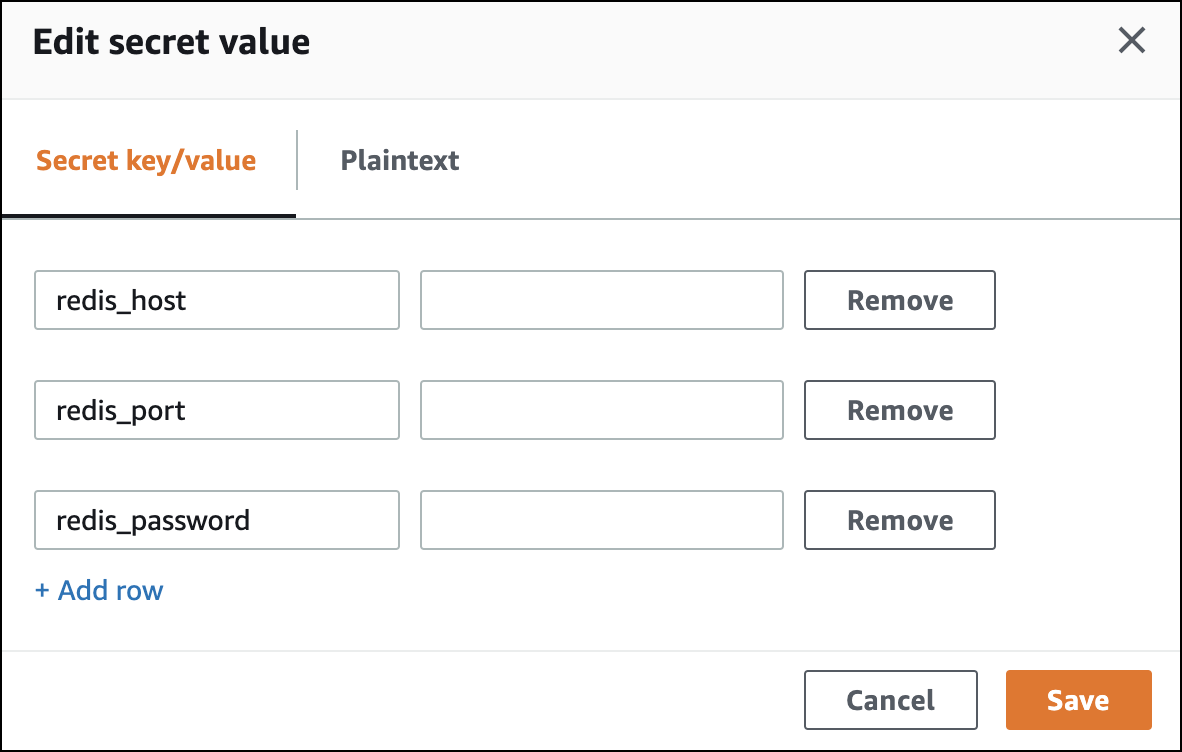

8-b. To include Redis you will need to add the following elasticache values (redis_port and redis_password are optional).

11821182

Redis keys and values

9. Modify the prod.env file on each instance.

📘

Configuring InsightCloudSec

The final step is completed outside of the AWS console. The example in the figure was completed at the local terminal. The prod.env files are located in the folder in which InsightCloudSec resides.

All environment information for the Primary and Secure databases can be replaced with a single variable. Be sure to update the value of region with the region where your Secret is stored in AWS.

# MySQL 5.7 Primary database
DIVVY_SECRETS_PROVIDER_CONFIG=AWSAssumeRole,region=us-east-2,secret_name=divvycloud-credentials

# Redis
DIVVY_REDIS_HOST=divvycloud.sample.0001.use2.cache.amazonaws.com
DIVVY_REDIS_PORT=6379

# Divvy Required - do not modify
VIRTUAL_ENV=/
DIVVY_DB_NAME=divvy
DIVVY_SECRET_DB_NAME=divvykeys

# Uncomment and adjust the below values if behind a proxy. Please note that
# 169.254.169.254 are used for AWS STS AssumeRole.
#http_proxy=http://proxy.acmecorp.com:8000
#https_proxy=http://proxy.acmecorp.com:8000
#no_proxy=mysql,redis,169.254.169.254
# May be needed if proxy is performing MITM operations. This tells the local container where to expect the update to the CA bundle.
#REQUESTS_CA_BUNDLE=/etc/ssl/certs/ca-certificates.crt

The first file above prod.env is what you want to have after you update.

The original file (shown below) is an example of a prod.env that typically appears before updates (STORING THESE VALUES VIA ENVIRONMENT VALUES IS NOW DEPRECATED).

# MySQL 5.7 Primary database
DIVVY_DB_HOST=mydivvycloudrds.sample.us-east-2.rds.amazonaws.com
DIVVY_DB_PORT=3306
DIVVY_DB_USERNAME=divvy
DIVVY_DB_PASSWORD=yourpasswordhere

# MySQL 5.7 Secure database
DIVVY_SECRET_DB_HOST=mydivvycloudrds.sample.us-east-2.rds.amazonaws.com
DIVVY_SECRET_DB_PORT=3306
DIVVY_SECRET_DB_USERNAME=divvy
DIVVY_SECRET_DB_PASSWORD=yourpasswordhere

# Redis
DIVVY_REDIS_HOST=divvycloud.sample.0001.use2.cache.amazonaws.com
DIVVY_REDIS_PORT=6379

# Divvy Required - do not modify
VIRTUAL_ENV=/
DIVVY_DB_NAME=divvy
DIVVY_SECRET_DB_NAME=divvykeys

# Uncomment and adjust the below values if behind a proxy. Please note that
# 169.254.169.254 are used for AWS STS AssumeRole.
#http_proxy=http://proxy.acmecorp.com:8000
#https_proxy=http://proxy.acmecorp.com:8000
#no_proxy=mysql,redis,169.254.169.254
# May be needed if proxy is performing MITM operations. This tells the local container where to expect the update to the CA bundle.
#REQUESTS_CA_BUNDLE=/etc/ssl/certs/ca-certificates.crt

If you are storing ElastiCache Redis values in secrets manager replace the following values:

# add:
DIVVY_REDIS_SECRETS_PROVIDER_CONFIG=AWSAssumeRole,region=us-east-2,secret_name=divvycloud-credentials

# comment out:
#DIVVY_REDIS_HOST=divvycloud.sample.0001.use2.cache.amazonaws.com
#DIVVY_REDIS_PORT=6379
