Kubernetes Local Scanner
Overview for Deploying and Configuring the Kubernetes Local Scanner
The local scanner supports managed Kubernetes clusters that are not accessible to InsightCloudSec and any self-managed Kubernetes clusters. When configured to provide access to each specific cluster, self-managed clusters will be harvested and assessed automatically through the local scanner after they are successfully added to InsightCloudSec.
Feature Overview
- Self-managed clusters need to be configured to provide access to each specific cluster and will be harvested and assessed automatically through the local scanner after they are successfully onboarded to InsightCloudSec.
- For managed clusters, when using a local scanner an account is created automatically and clusters that cannot be accessed will be marked with an error and placed into the harvesting "Paused" state.
- When installing a local scanner for managed clusters, special care should be given to assigning the cluster ID.
- Note: we recommend using the provider resource ID, otherwise a new account will be created that is detached from the account that was automatically created, losing all the benefits of tags and badges synchronization.
- To migrate between scanners refer to the instructions on the Clusters Account Setup & Management page.
Setup & Configuration
Generating an API Key
Generating an API Key is required to identify and authenticate the local scanners (one on each cluster) and allow the scanner to report inventory and Guardrails assessment findings to the InsightCloudSec platform.
1. Navigate to your InsightCloudSec installation and click to open "Cloud --> Kubernetes Clusters".
2. On the top of the page click the "Add Kubernetes API Key" button.

Add a Kubernetes API Key
3. Click "Add API Key".
4. Provide a name for the Key and ensure the Activate this API Key checkbox is selected, then click "Create API Key".
4. Copy the newly generated API key and store it in a safe place. Note: This will be your only opportunity to save this information.
Manage Existing API Keys
Clicking the "Add Kubernetes API Key" button will enable you to generate new API Keys, manage a keys' status (activated, deactivated), and delete unused keys.
Our current setup supports up to two API keys for API key rotation. The clusters will be installed as a single Organization (within InsightCloudSec).

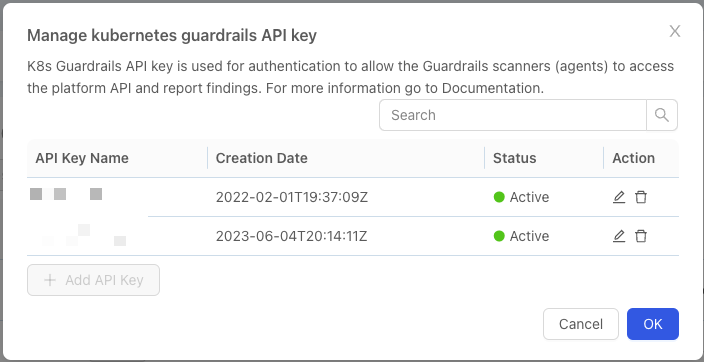

Managing your Kubernetes API Keys
Applying New API Keys
Assuming you have applied the suggested naming convention for the Helm repository and installation, the command for updating your Kubernetes Scanner deployment for new API keys should look like:
helm upgrade k8s-guardrails helm-repo/k8s-guardrails -n rapid7 --set K8sGuardrails.ApiToken=<new token>
Verifying Configuration Requirements
Before using Kubernetes Security Guardrails feature you will need to verify that your local machine is set up with helm
and kubectl
.
To do this you can run the helm
and kubectl
commands (individually) to set the correct context against your Kubernetes cluster. Helm is required to install the Guardrails scanner.
Setup for kubectl
If you do not have an existing kubectl
setup refer to the following in order to connect to your Kubernetes cluster:
- To install
kubectl
on OSX - To install
kubectl
on Linux - To install
kubectl
on Windows
Setup for Helm
If you do not have an existing Helm install setup refer to the following in order to connect your Kubernetes cluster:
1. Download and install Helm.
Cluster Network Access Requirements
Steps 2- 6 below should be executed on all designated clusters.
Every cluster must have network access to the InsightCloudSec server's IP and Port.
For SaaS customers, your cluster(s) will be making requests to your InsightCloudSec installation on one of two IP addresses specific to your installation. It is possible to obtain your IP addresses by performing a DNS lookup on your installation’s domain name.
2. Connect to the cluster context that you would like to install k8s guardrails.
- For GKE clusters
- For EKS clusters
- For AKS clusters
- For local clusters such as kind, minikube, or kubeadm
3. Add the K8s guardrails Helm repo by issuing the following commands:
- Refer to the Notes for Helm Install Commands for details.
helm repo add helm-repo https://helm.rapid7.com/cloudsec
helm search repo
helm install k8s-guardrails helm-repo/k8s-guardrails -n rapid7 --create-namespace \
--set K8sGuardrails.ApiToken=<InsightCloudSec-API-token> \
--set Config.ClusterName=<InsightCloudSec-Cluster-Name> \
--set Config.Labels=<InsightCloudSec-Cluster-Badges> \
--set CronSchedule=<k8sGuardrails-CronSchedule> \
--set Config.BaseUrl=<InsightCloudSec-Base-URL> \
--set Config.ClusterId=<InsightCloudSec-Cluster-ID> \
--set devopscurlSpec.SelfSignedCert.Enabled=<Enable-Self-Cert> \
--set devopscurlSpec.SelfSignedCert.CertSecretName=<Self-Cert-Secret-Name> \
--set Config.HasNodeFsAccess=false
The last --set
command can also be replaced with the following:
--set devopscurlSpec.SelfSignedCert.CertPem=<Self-Cert-Pem-Base64>
Specifying Resource Limits
InsightCloudSec includes the ability to specify resource limits and requests for Guardrails containers.
The helm key to set should start with the following YAML hierarchy:
"<container spec>.Resources."
following the wanted resources requests/limits, where <container spec>
is one of "advisorSpec/mergerSpec/inventoryscannerSpec/exporterSpec/devopscurlSpec"
advisorSpec.Resources.requests.cpu=200m
advisorSpec.Resources.requests.memory=100Mi
advisorSpec.Resources.limits.cpu=1
advisorSpec.Resources.limits.memory=1Gi
For more info and how to configure refer to Kubernetes documentation on Resource Management for Pods and Containers
Using a Self-Signed Certificate
Accessing InsightCloudSec from the Kubernetes scanner is done over TLS. While in most cases a public Certificate Authority is used, some organizations use a private Certificate Authority that requires the Kubernetes scanner to be configured with a self-signed certificate.
Configuring a self-signed certificate is done by providing additional parameters to the helm chart installation indicating the use of a self-signed certificate and providing the certificate in the format of base64 encoding.
An example is below:
helm install k8s-guardrails helm-repo/k8s-guardrails -n rapid7 --create-namespace --set K8sGuardrails.ApiToken=token --set Config.ClusterName="Cluster name" --set CronSchedule="30 * * * *" --set Config.BaseUrl=https://self-sign-cert-ics.com --set Config.ClusterId="cluster-id" --set devopscurlSpec.SelfSignedCert.Enabled=true --set devopscurlSpec.SelfSignedCert.CertPem=LS...0t --set Config.HasNodeFsAccess=false
Notes for Helm Install Commands
Property | Description | Instructions |
---|---|---|
<InsightCloudSec-Base-URL> | Mandatory. Set this to the base URL for your InsightCloudSec platform installation. | If unknown, API URL can be retrieved from the InsightCloudSec interface: - Navigate to "Administration → System Administration" - Select System - Copy the Base URL field This URL should be used alongside the path to the endpoint: <base-url> See example: https://mycompany.divvycloud.com/ |
<InsightCloudSec-API-token> | Mandatory. Define API Key on the InsightCloudSec platform. K8s Guardrails API token is used in token-based authentication to allow the Guardrails scanners (agents) to access the platform API and report findings. Note: Ensure you generate a secure API token. | In the interface, navigate to "Cloud → Clouds." Select “Add k8s API Key”. Enter the API Key to be used to link with your Kubernetes clusters. |
<InsightCloudSec-Cluster-Name> | Mandatory. User defined cluster name | |
<InsightCloudSec-Cluster-ID> | Mandatory. Must match the ARN field of the discovered cluster in order to correlate correctly and to be able to generate coverage reports. | Navigate to the Resource page or use API to get “Kubernetes Cluster Without Guardrails Report”. Reports contain ARN for each cluster. Refer to Discovery for Existing Clusters for details. |
<InsightCloudSec-Cluster-Badges> | Optional. The cluster badges, if provided, will be translated into cloud account (cluster) badges that you can user later on to navigate/filter Insight findings. | Example of Cluster-Badges:'\{\"environment\": \"production\"\, \"owner\": \"[email protected]\"\, \"risk\": \"low\"\, \"provider\": \"EKS\"\}' |
<k8sGuardrails-CronSchedule> | Optional. Creates periodic and recurring tasks to run the Guardrails scanner. Default scanning schedule (if not specified) is once an hour. | For CronJob Scheduling refer to the following information. |
Enable-Self-Cert | Enable this feature and supply the Self-Cert-Secret-Name and Self-Cert-Pem-Base64 if your ICS server is using a self-signed cert. | Boolean type. |
Self-Cert-Secret-Name | Optional Can be replaced by Self-Cert-Pem-Base64. | Create a secret in the same namespace and pass the secret name. |
Self-Cert-Pem-Base64 | Optional Can be replaced by Self-Cert-Secret-Name. A base64 encoded string of the self signed certificate PEM file. | Pass a base64 encoded certificate. This option is less recommended then using the Self-Cert-Secret-Name property. If this option is used, ensure value passed via an inline paramater using the --set flag and not hardcoded in the values.yaml file. |
IsOpenShift | Optional Enable this feature if your Kubernetes cluster is running on OpenShift. | Boolean type |
Config.HasNodeFsAccess | Optional Enable this feature to access the Node Scanner (requires additional configuration) | Boolean type |
4. To verify that k8s-guardrails works successfully, you will need to trigger a job manually, using the following command.
kubectl create job --from=cronjob/k8s-guardrails -n rapid7 k8s-guardrails-manual-001
5. Verify that the pod is in the completed status.
- Time to completion status will depend on the size of the cluster.
kubectl get pods -n rapid7 | grep k8s-guardrails-manual-001
6. Verify that the cluster is marked as “monitored” and that resources appear with findings on them.
Discovery for Existing Clusters
To identify clusters that are not currently covered you will need to refer to the following steps. Below are instructions to identify clusters using the InsightCloudSec UI or the InsightCloudSec API.
Discovery of Clusters Using the UI
1. From your InsightCloudSec platform installation, navigate to “Inventory → Resources” and select the "Containers" tab.
2. (Optionally) Use the "Scopes" button at the top of the page to narrow the scope (e.g., cloud accounts, resource groups) to use when scanning for clusters that are not yet included in your InsightCloudSec setup.
3. From the Containers tab, select “Clusters” to see a list of all of the clusters included in the selected scope.
4. Navigate to “Filters” and search for/select the “Kubernetes Cluster Without Guardrails Report”.

InsightCloudSec Platform - Filter for Clusters without Guardrails
- Selecting this filter will update the resources to only include clusters that have not been scanned.
- The cluster ID field that displays will be used when deploying Guardrails to a specific cluster.
5. Locate the "Cluster ID" column and note the Cluster you want to deploy Guardrails in.
- Note: You will have to scroll to the right to see all of the columns

Cluster ID for Containers
Cluster ID
InsightCloudSec uses the Cluster ID to identify clusters. Using the Cluster ID allows us to correlate between clusters discovered via the InsightCloudSec platform (either through the UI or API) vs. clusters onboarded through the Alcide scanning capability.
Discovery of Clusters Using the API
For information on using the InsightCloudSec API refer to the Getting Started.
1. Login to the InsightCloudSec (DivvyCloud) API using your username and password in the request body in a POST
to v2/public/user/login
.
2. Use the session_id
from the response in the X-Auth-Token header
. Use the following request body in a POST
to v2/public/resource/query:
{
"selected_resource_type": "containercluster",
"filters": [{
"name": "divvy.query.kubernetes_cluster_without_guardrails_report",
"config": {}
}],
"offset": 0,
"limit": 100
}
3. The resources
list will display clusters that have not been scanned; the ARN
field will be used when deploying Guardrails to a specific cluster.
- Save the ARN details for clusters where you want to configure Kubernetes Security Guardrails.
What's Next?
Refer to the Kubernetes Security Guardrails for an overview of this feature and a summary of the prerequisites.
Jump to the Using Kubernetes Security Guardrails page to view details on using the feature and exploring the imported data.
