Data Collections

Working with InsightCloudSec Data Collection for Reusable Data Definitions

Data Collections simplify resource filtering, Insight analysis, and Bot configuration. This feature allows administrators to build out reusable data definitions--collections of strings--that can be used and reused when creating and updating Insights and Bots. The Data Collections can be associated with any number of the hundreds of filters in the product.

When you edit a Data Collection, all Insights and Bots that use that collection will automatically use the updated collection next time they run; you needn't repeat your edits across multiple Insights and Bots.

Example Use Case

If you want to specify a list of trusted accounts, and disallow certain kinds of activity from all other accounts. You might set up Bots configured with these Insights:

  • Resource With Cross Account Access to Unknown Account
  • Network Peers Connected to Unknown Accounts
  • Service Role Trusting Unknown Account
  • Cloud Role Trusting Unknown Account

You'll configure all of these Bots with the same set of account numbers. Manually entering and updating the list of allowed accounts in all of these Bots is a tedious and error-prone process; Data Collections can make correctly managing these reused inputs fast and easy, even for sets of tens of thousands of strings.

A Data Collection can contain up to 4MB of strings, allowing you to manage tens of thousands of entries, defining the behavior of many Insights and Bots, in a single list. The admin creating or editing a Data Collection is responsible for ensuring the integrity of the collection, e.g., a list of accounts must contain only valid account numbers; Data Collections will not validate the entered lists.

Accessing Data Collections

Data Collections is available from your InsightCloudSec platform under the "Cloud" heading ("Cloud --> Data Collections").

16001600

Data Collections Landing Page

From this page you can:

  • Add new Data Collections - Click the "New Collection" button on the top right of the Data Collections page.
  • Delete outdated Data Collections -- Check the box to the left of the Data Collection you want to remove, and then select the trash can that appears above the collections list.
  • View and edit your Data Collections - Select a collection by clicking on the blue text; edit or add descriptions for your entries.
11751175

Data Collections Options

Viewing and Editing Data Collections

  • Rename the collection: - Click the pencil icon to the left of the name
  • Add items: Add a new item by including the value (e.g. the input string - an account number), and a description (to help you understand why items have been added and to assist with audit and maintenance.
    • Click the "ADD" button to the right of the line to add it.
    • Click the box next to a line you want to remove, click the trash icon to remove it.
29462946

Data Collections Example - Trusted Third Party Accounts

Using Data Collections

The process described below demonstrates using data collections in filtering Resources. This process is the same working with Insights or Bots. For entering and editing large lists, refer also to the API documentation for Data Collections.

Creating a New Data Collection

1. Navigate to "Resource --> Resources" and select "Query Filters" to open the Query Filter pane.

2. Use the search bar to find the name of the filter of interest, e.g., Resource Trusting Unknown Account.

19141914

Locating Query Filters

3. Click "Apply" and enter any tags, names, or other strings to configure the Query Filter.

4. Select "Create" to create a new Data Collection containing these inputs.

14491449

Create New Data Collection

5. Use the Create modal that opens to name the new Data Collection.

  • Note: Data Collections are required to have unique names.
14521452

Naming the New Data Collection

Importing a CSV

Alternatively, Data Collections can be created by importing a CSV file:

1. From the Data Collections page, select "New Collections" in the upper right-hand corner.

2. Select "Choose a file" to import your CSV.

28762876

Importing a Data Collection CSV

3. The CSV should be formatted using two columns for value-description pairs (not key-value pairs).

  • Each value has a max character limit of 255.
  • Each value must be unique within a data collection; duplicate values are ignored.
  • Empty values are automatically excluded.
  • The description is not required and does not have a character limit.
12021202

Example - Approved AMIs in the value column and image name in the description column.

4. After selecting the CSV and naming the new data collection, choose "Create" to complete importing.

  • Note: Data Collections are required to have unique names.

Using an Existing Data Collection

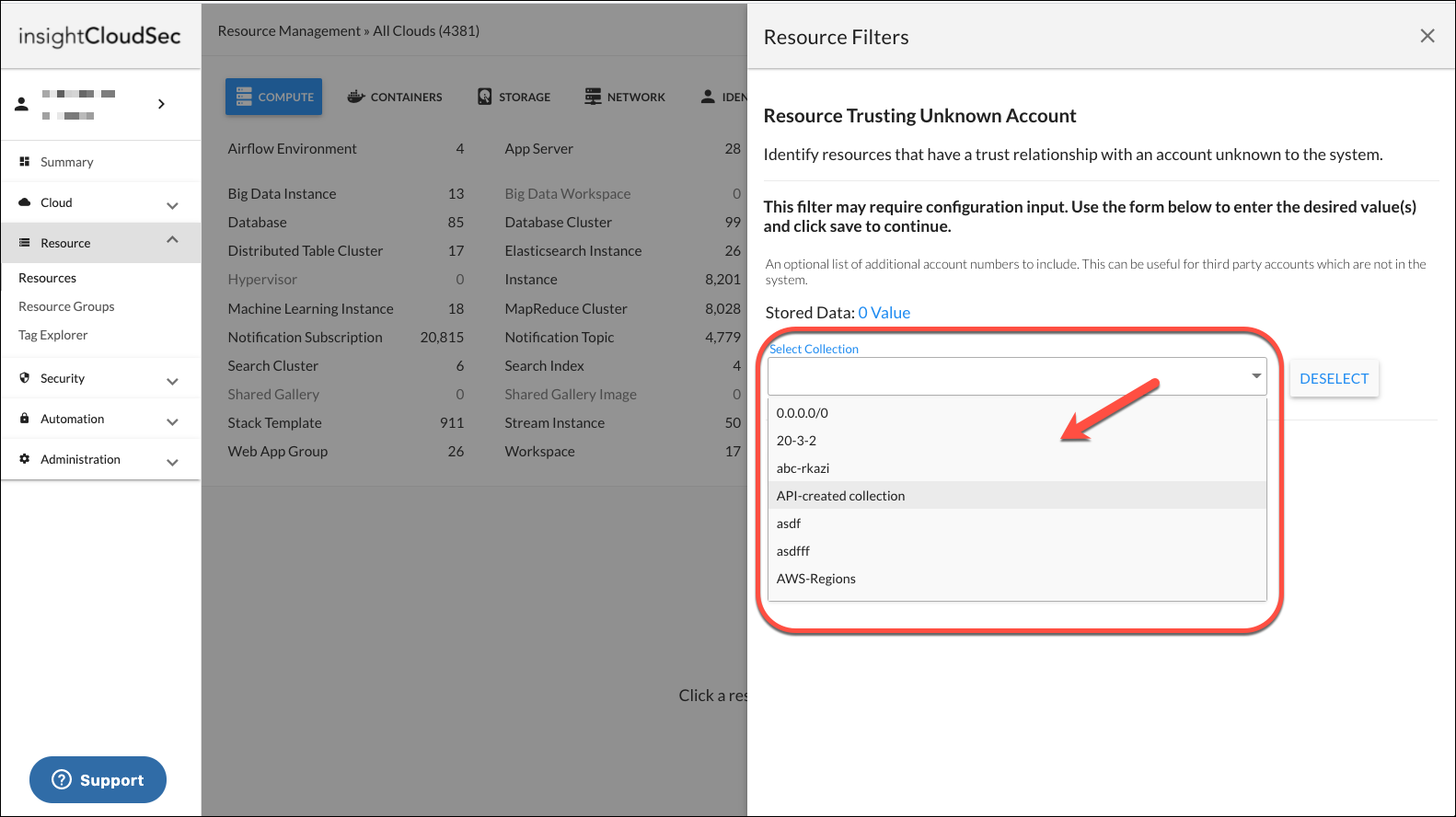

In the Resource Query Filters pane, you can select an existing Data Collection:

18601860

Apply Existing Data Collection to a Resource in the Query Filter Pane

Using Data Collections Programmatically

Many use cases for Data Collections -- such as maintaining lists of hundreds or thousands of allowed accounts -- are best done programatically. To support these use cases, we've written the module provided below, which uses our REST API to create, populate, and update Data Collection contents. These functions can be imported directly and used as a module in your management scripts, or can be copied-and-pasted from as snippets.

"""
This collection of functions can help you programatically manipulate Data
Collections in InsightCloudSec using our REST API.

These functions are intended to be copied and pasted into your code, or can be
imported and used directly in your tools.
"""

from collections import Mapping
import json
import os
import requests
from requests.api import request


# Assumes the presence of these environment variables:
# INSIGHTCLOUDSEC_API_USER_USERNAME -- user we want to authenticate as
# INSIGHTCLOUDSEC_API_USER_PASSWORD -- user's password
# INSIGHTCLOUDSEC_BASE_URL -- base url for the InsightCloudSec instance to run against
# INSIGHTCLOUDSEC_API_KEY -- API Key to interact with the InsightCloudSec REST API
USERNAME, PASSWORD, BASE_URL, API_KEY = (os.environ['INSIGHTCLOUDSEC_API_USER_USERNAME'],
                                os.environ['INSIGHTCLOUDSEC_API_USER_PASSWORD'],
                                os.environ['INSIGHTCLOUDSEC_BASE_URL'],
                                os.environ['INSIGHTCLOUDSEC_API_KEY'])
BASE_HEADERS = {'Content-Type': 'application/json;charset=UTF-8',
                'Accept': 'application/json',
                'Api-Key': API_KEY}


def create_data_collection(collection_name, collection_data=None):
    """
    Create a new data collection with name `collection_name`, optionally
    populated with the values in the dictionary `collection_data`.

    `collection_data` should be one of 2 things:
    - a dictionary mapping Data Collection values to descriptions. Using `None`
      as a description will result in the description being set to the empty
      string.
    - an iterable of strings, which will be inserted as values with no
      descriptions.

    For example, the following is a valid input:

    ```
    {
        'value one': 'description for value one',
        'value two': None,  # description will be set to the empty string
        'value three': 'description for value three'
    }
    ```

    Or you can simply pass a list like `['first value', 'second value']`, which
    is equivalent to passing `{'first value': None, 'second value': None}`
    """

    data = {'collection_name': collection_name,
            'collection_data': normalize_collection(collection_data)}

    return requests.post(
        url=requests.compat.urljoin(BASE_URL, '/v2/datacollections/'),
        headers=BASE_HEADERS,
        data=json.dumps(data)
    )

def update_data_collection(collection_id, collection_data):
    """
    Update the existing data collection with integer ID `collection_id` using
    the data in `collection_data`.

    `collection_data` should be a dictionary mapping values to descriptions.
    Any new key: description value pairs will be inserted into the data
    collection; any whose key already exists in the Data Collection will be used
    to update the existing description value.

    Descriptions may be `None`. A description equaling `None` in a new entry
    will result in an empty description. For existing entries, a description
    equaling `None` will result in no changes to an existing description;
    setting a description to the empty string must be done explicitly. For
    example:

    ```
    {
        # set the description for an existing value 'value one', or create a
        # new value with that description
        'value one': 'description for value one',
        # leave the description for an existing value 'value two' unchanged, or
        # create a value 'value two' with no description
        'value two': None,
        # empty the description for an existing value 'value three', or create
        # a new value with an empty description
        'value three': ''
    }
    ```

    Note that this operation does not remove any entries from the data
    collection.
    """
    url = requests.compat.urljoin(
        BASE_URL,
        requests.compat.urljoin('/v2/datacollections/', str(collection_id))
    )

    result = requests.post(
        url=url,
        headers=BASE_HEADERS,
        data=json.dumps({'collection_data': normalize_collection(collection_data)})
    )
    return result


def delete_data_collection_values(collection_id, values_to_delete):
    """
    Delete all entries with values in the iterable `values_to_delete`.

    Note that this is a 2-phase operation: this first checks that the values
    exist and gets their IDs within the collection, then sends the request to
    delete them. This means that calling this method concurrently with other
    data collection manipulation could have unexpected results.
    """
    url = requests.compat.urljoin(
        BASE_URL,
        requests.compat.urljoin('/v2/datacollections/', str(collection_id))
    )

    # phase 1: grab existing entries
    collection_result = requests.get(
        url=url, headers=BASE_HEADERS
    )
    existing_values_to_ids = {
        datum['value']: int(datum['id'])
        for datum in collection_result.json()['collection']['data']
    }

    # pre-deletion check: we should only try to delete entries that exist
    if not set(values_to_delete) < set(existing_values_to_ids):
        raise ValueError(
            'Some values to be deleted not in existing data '
            'collection: {}'.format(set(values_to_delete) - set(existing_values_to_ids))
        )
    # phase 2: delete specified entries
    return requests.delete(
        url=url,
        headers=BASE_HEADERS,
        data=json.dumps({
            'data_ids': [existing_values_to_ids[value] for value in values_to_delete]
        })
    )

def normalize_collection(collection_data):
    if isinstance(collection_data, Mapping):
        return collection_data
    return {datum: None for datum in collection_data}
