Badges allow you to customize the organization of your cloud accounts within DivvyCloud. Badges are key-value pairs, similar to AWS tags or GCP labels. However, tags and labels are applied to resources, and badges are applied to entire cloud accounts. For example, one badge might have a key of “environment” and a value of “production”.

Be aware that most badge features require appropriate permissions. (Learn more about required permissions here)

In this section, we will cover:

  • Adding and removing badges
  • Using badges in notification messages
  • Scoping with badges
  • Viewing your badges summary.

Default Badges

When a cloud account is added, DivvyCloud automatically assigns it two system badges: divvy.cloud_type and divvy.resource_type. No user-specified badge may begin with divvy.

Adding and Removing Badges

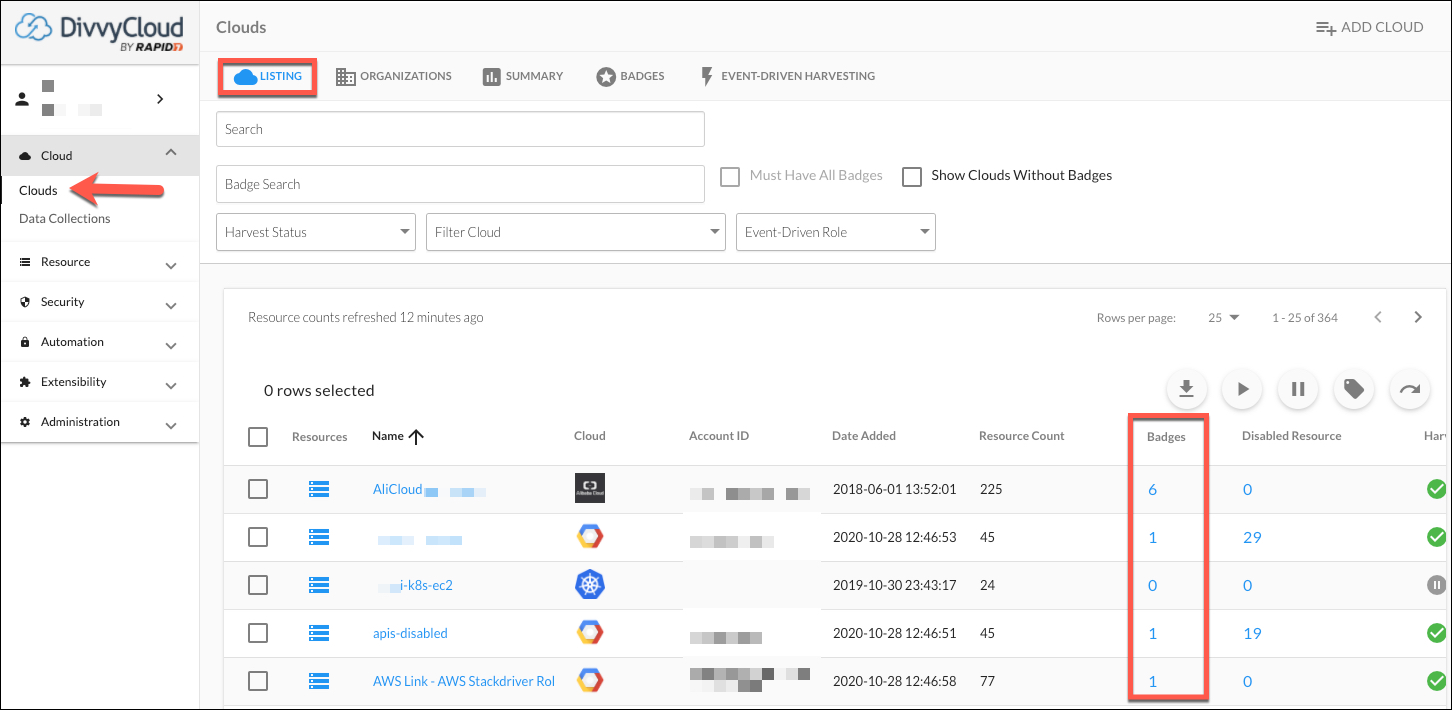

  1. Open the “Clouds” page in your account from the navigation menu, and then find the “# Badges” column for the cloud to/from which you want to add/remove badges. Click on the number in that column.
  2. The “Add Cloud Badges” dialog window will appear. In this dialog, click the plus icon (+) to create a line for your new badge.
  3. In the new, blank space, add the name of your new badge. Badge names have no restrictions except that they may not begin with the string divvy. Both badge keys and badge values are case-sensitive. Repeat this process for as many new badges as you like.
  4. To remove any user-created badges, click the minus icon (-) next to each entry you wish to remove.
  5. When you are finished adding and removing badges, click the “SUBMIT” button to save your changes.
Adding and Removing Badges to/from Cloud Accounts

Adding and Removing Badges to/from Cloud Accounts

Scoping With Badges

Badges can be used to scope clouds, insights, resources, bots, and user roles.

Scoping Clouds With Badges

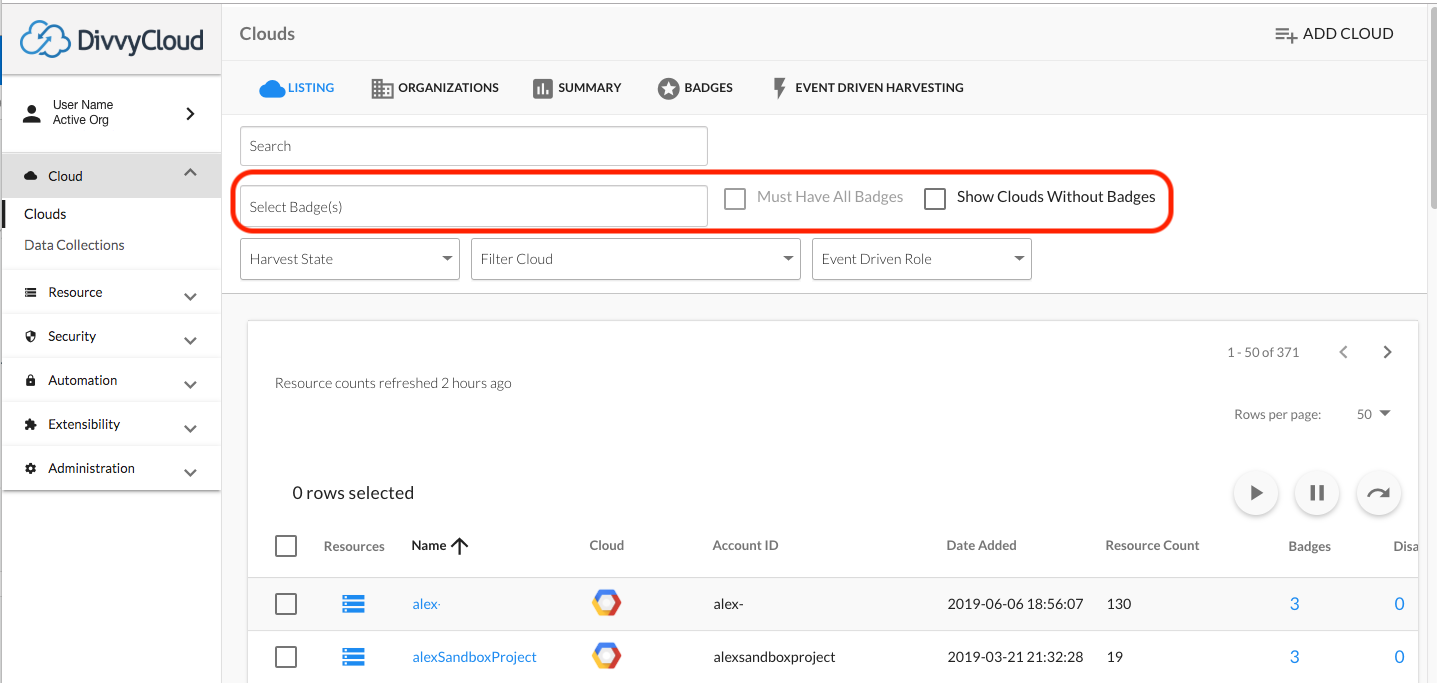

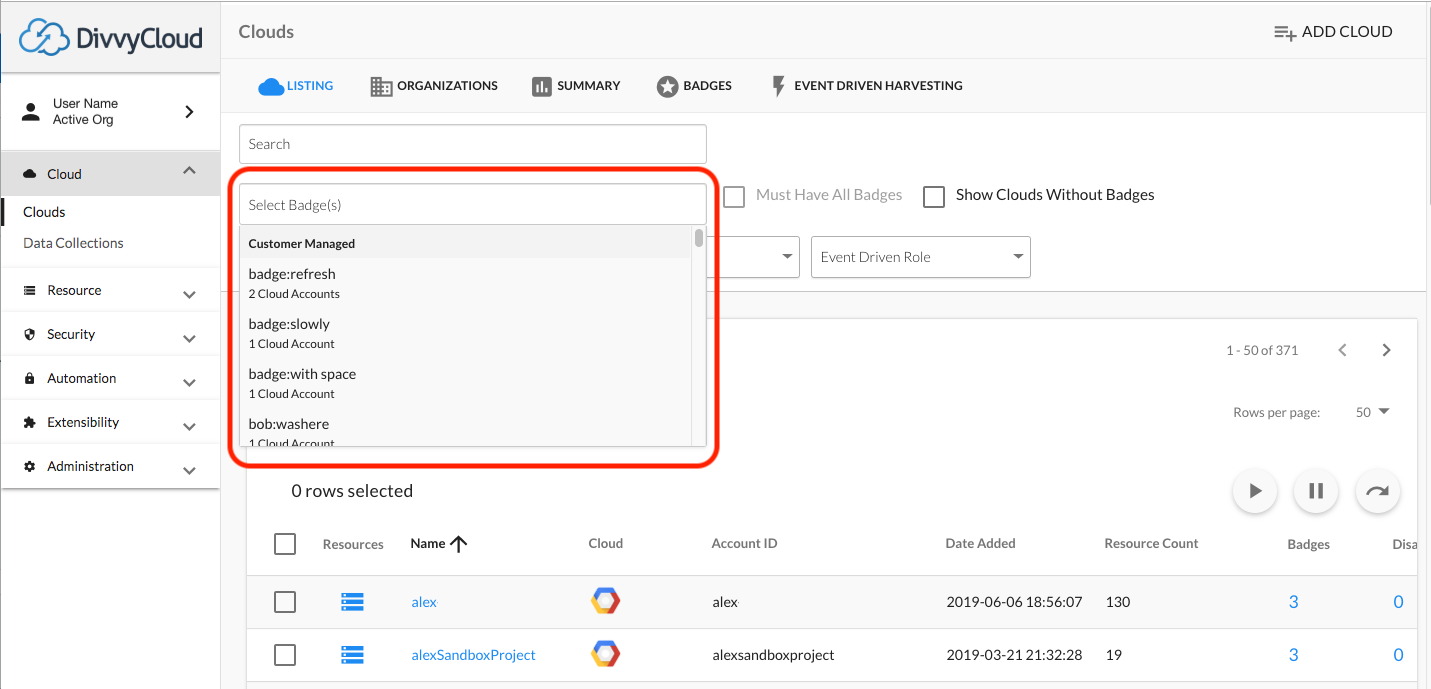

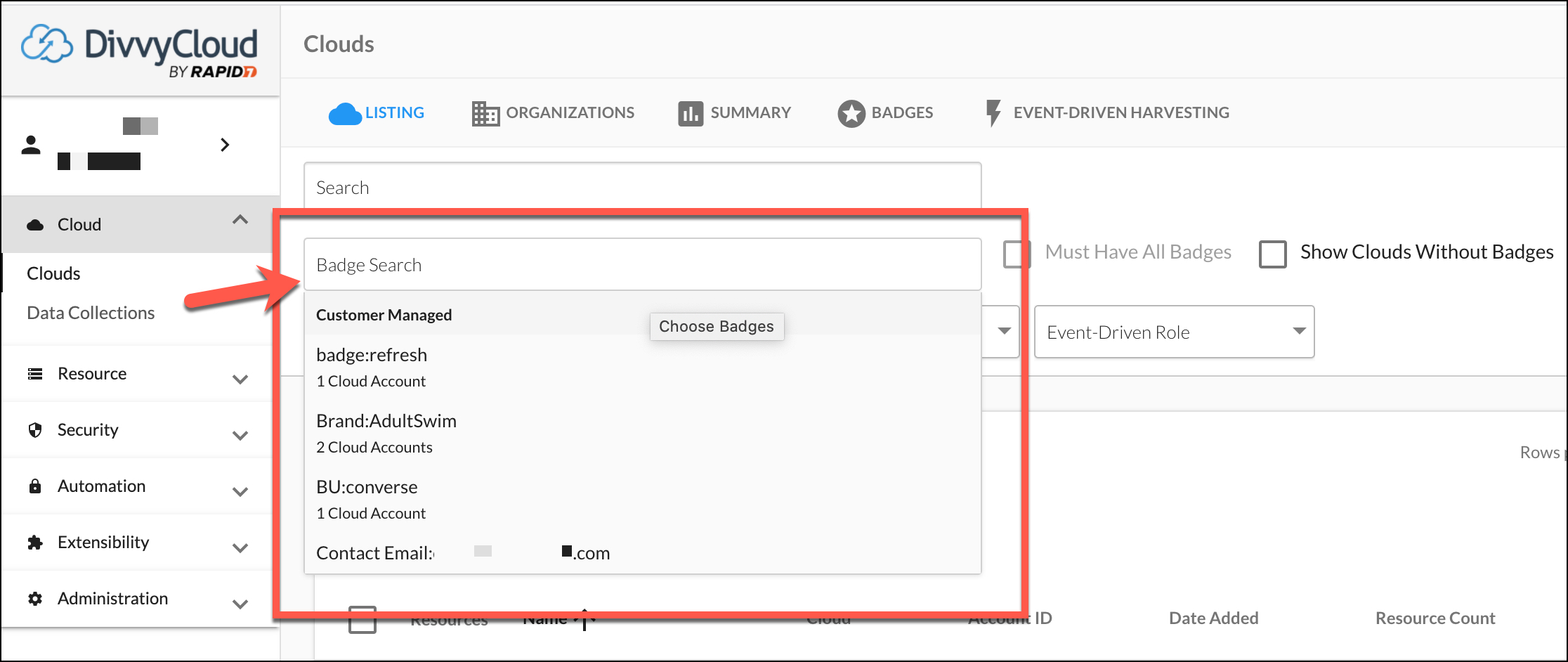

  1. To narrow your list of clouds by badge, navigate to the Clouds page and click on the “Search Badge(s)” text box.
Scoping Clouds with Badges - Selecting Badges

Scoping Clouds with Badges - Selecting Badges

  1. A drop-down list showing existing badges will appear. Select the badges you want to use to scope your clouds. For example, selecting the badge "environment:production" will produce a list containing only clouds with badges matching "environment:production."
Scoping Clouds with Badges - Matching at Least One Badge

Scoping Clouds with Badges - Matching at Least One Badge

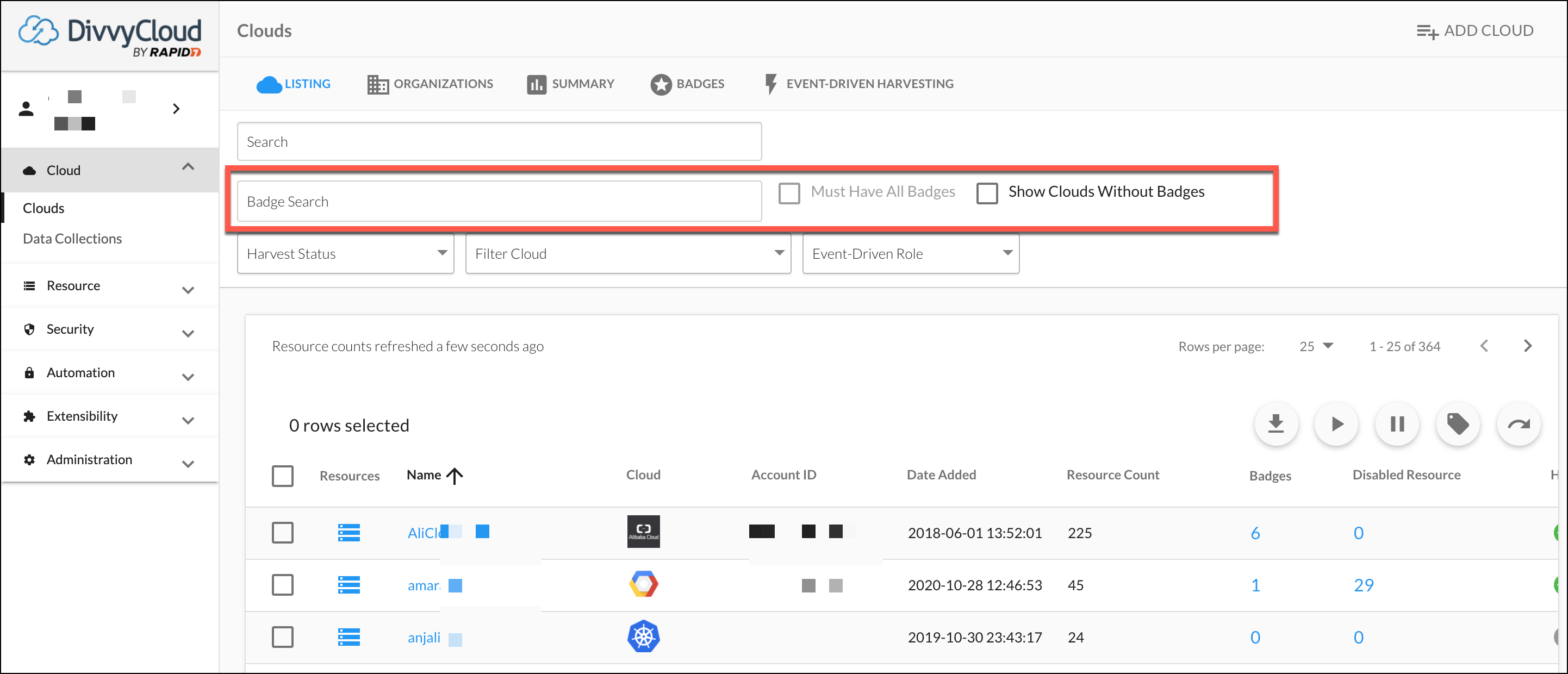

  1. You can choose multiple badges to narrow your resulting list of clouds. By default, results shown match at least one badge in your provided criteria. To show only those results which match all selected badges, check the “Must Have All Badges” checkbox.
Scoping Clouds with Badges - Matching All Badges

Scoping Clouds with Badges - Matching All Badges

Scoping Insights With Badges

Badges can be used to enhance the functionality of insights by allowing you to filter how you view your insights’ results.

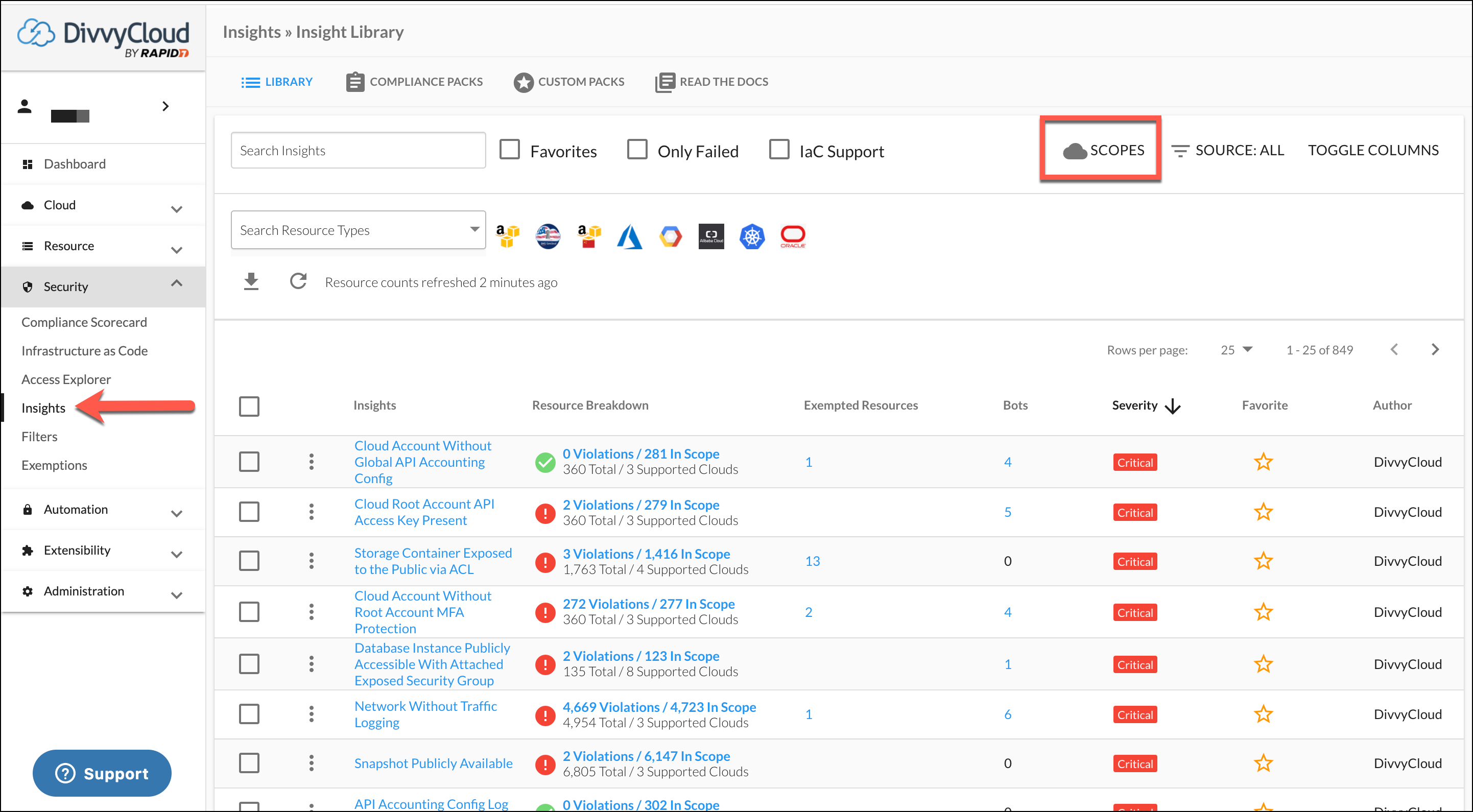

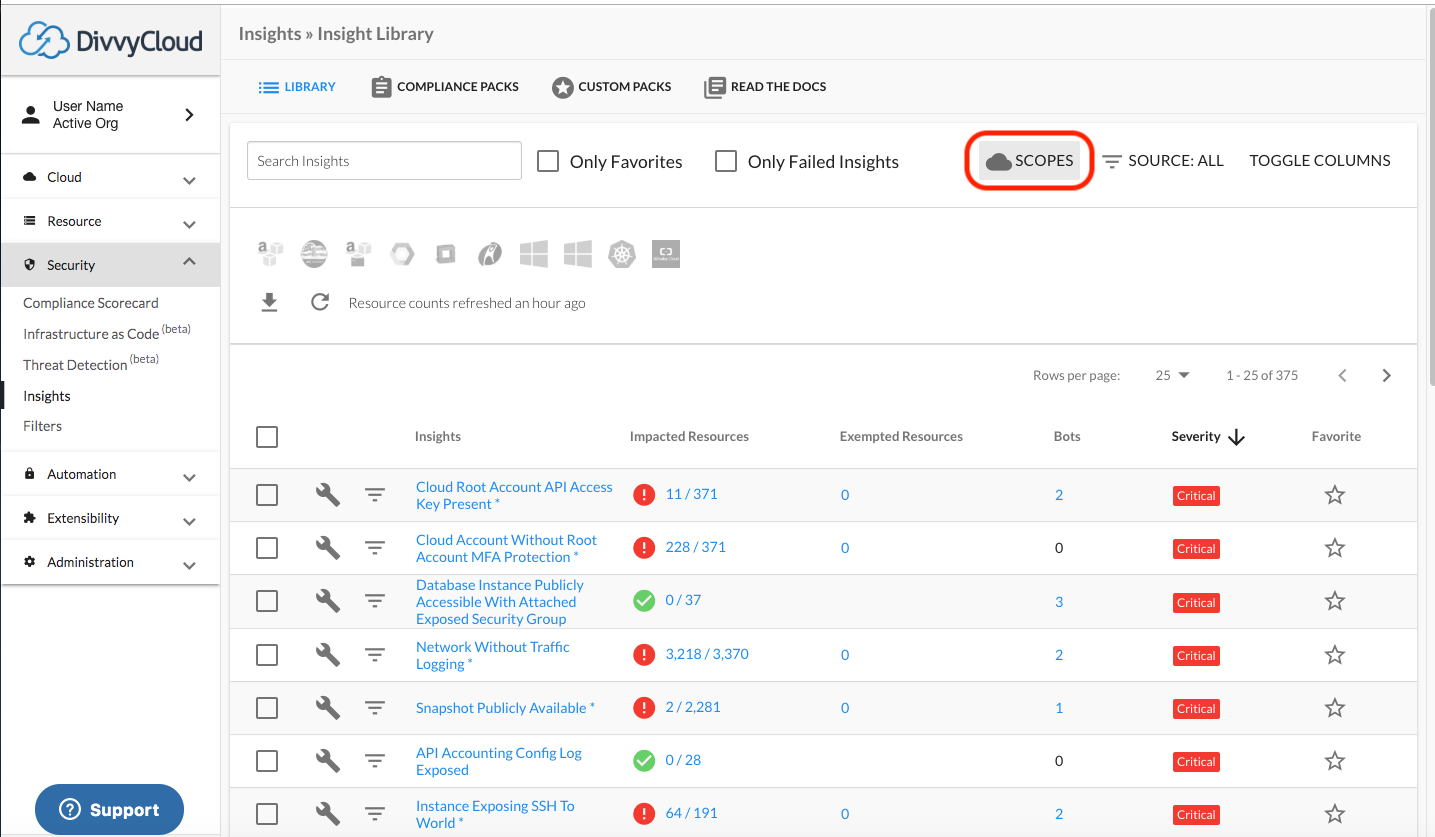

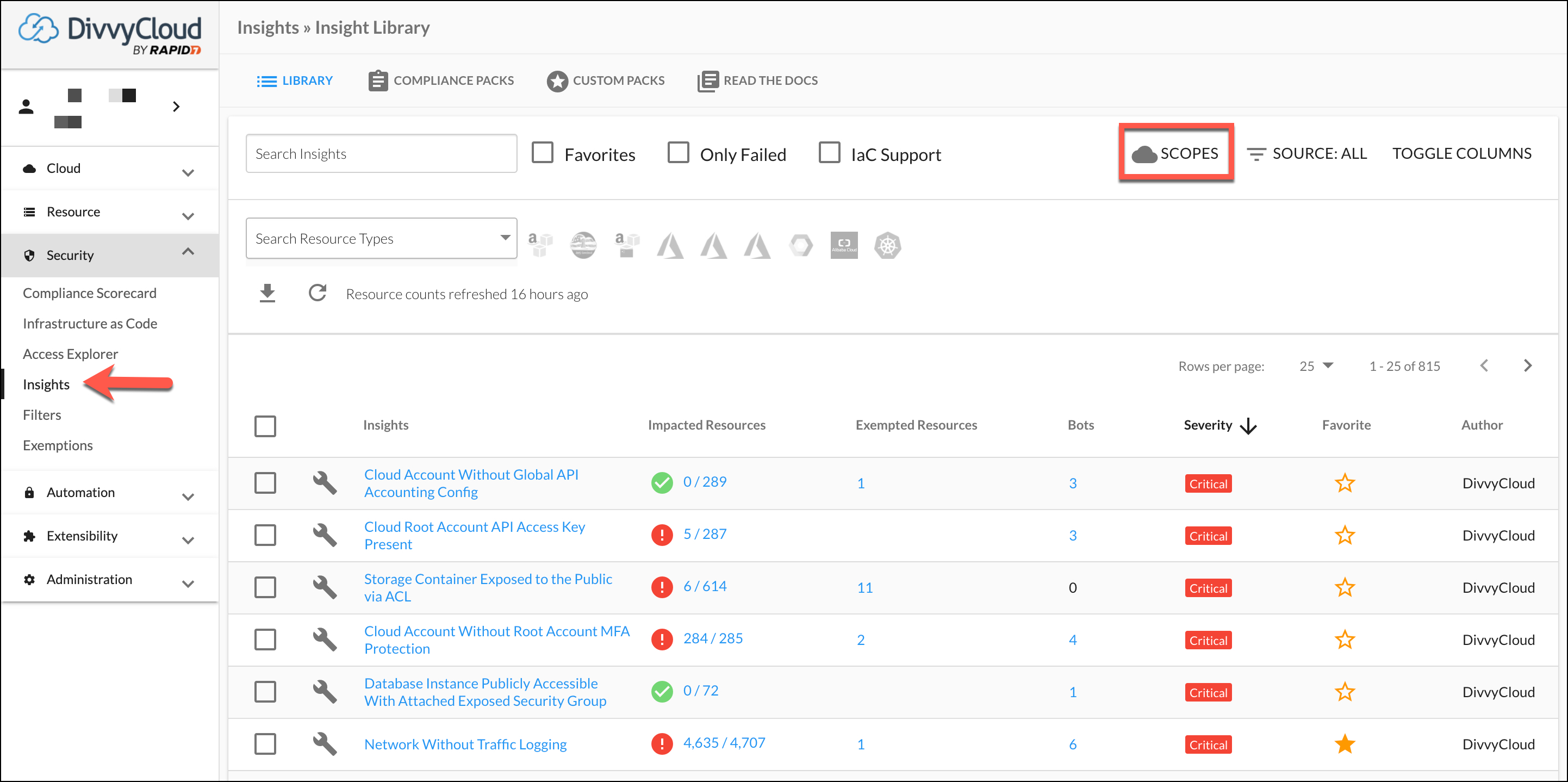

  1. Select an insight pack from the Insights: Featured Packs page or by going directly to the Insights: Library. From there, click on the “SCOPES” button.
Accessing Scopes for an Insight

Accessing Scopes for an Insight

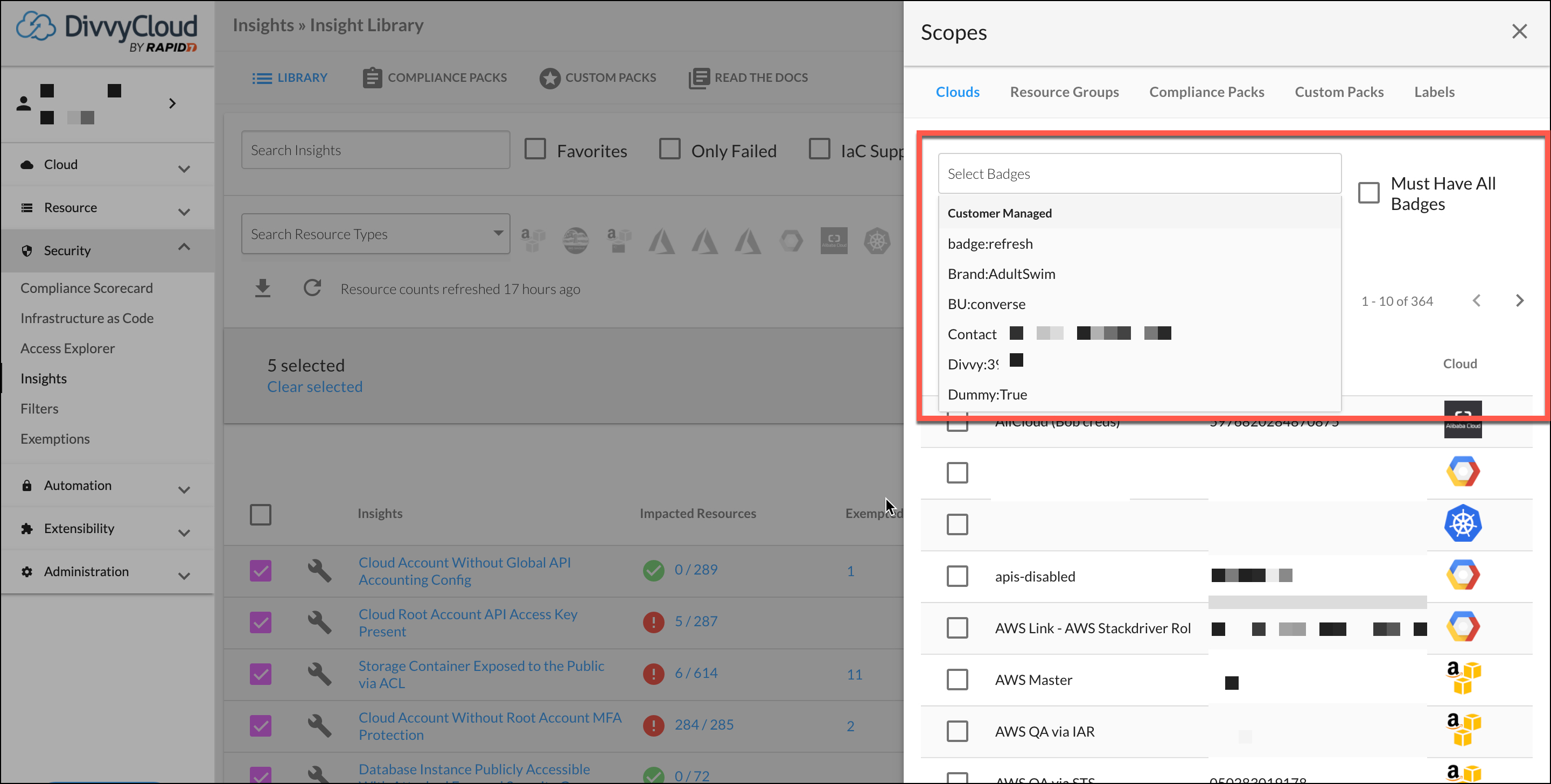

  1. The Scopes menu will slide in from the right side of the window. Click on the “Select Badges” text box and a drop-down list will appear with all available badges from your list of clouds.

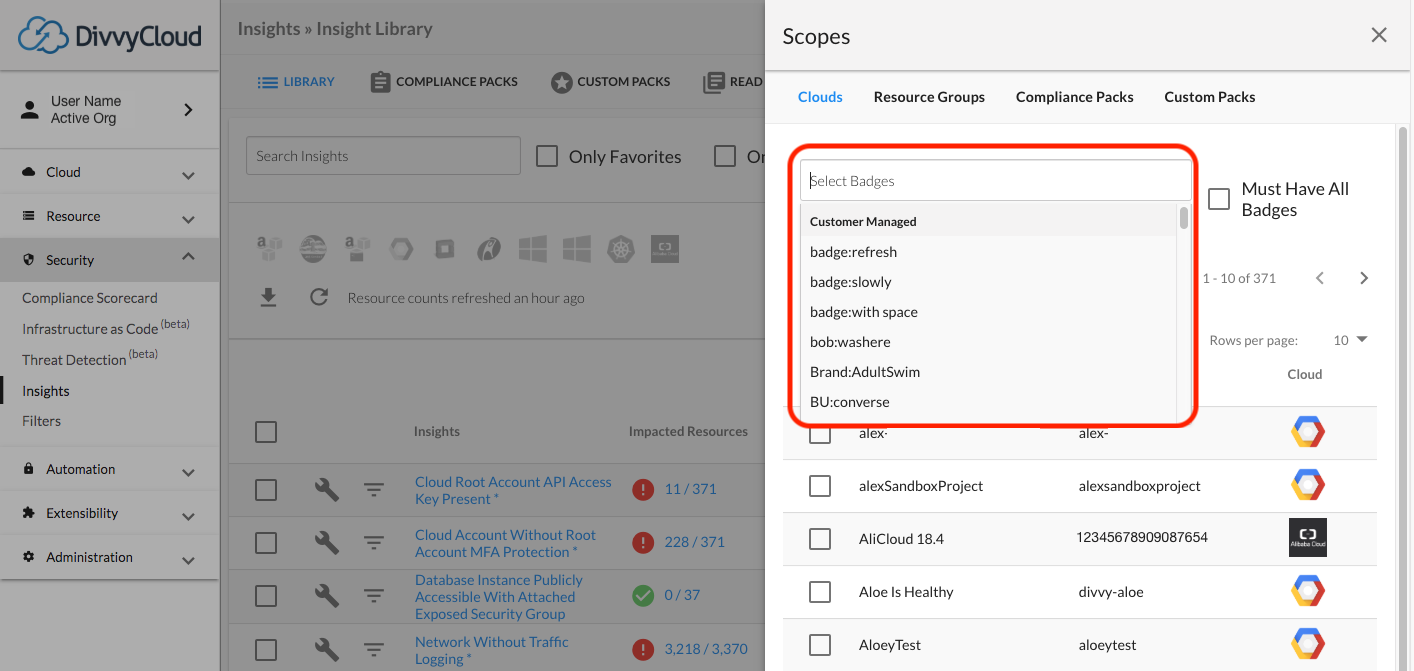

Selecting Scopes for an Insight

Selecting Scopes for an Insight

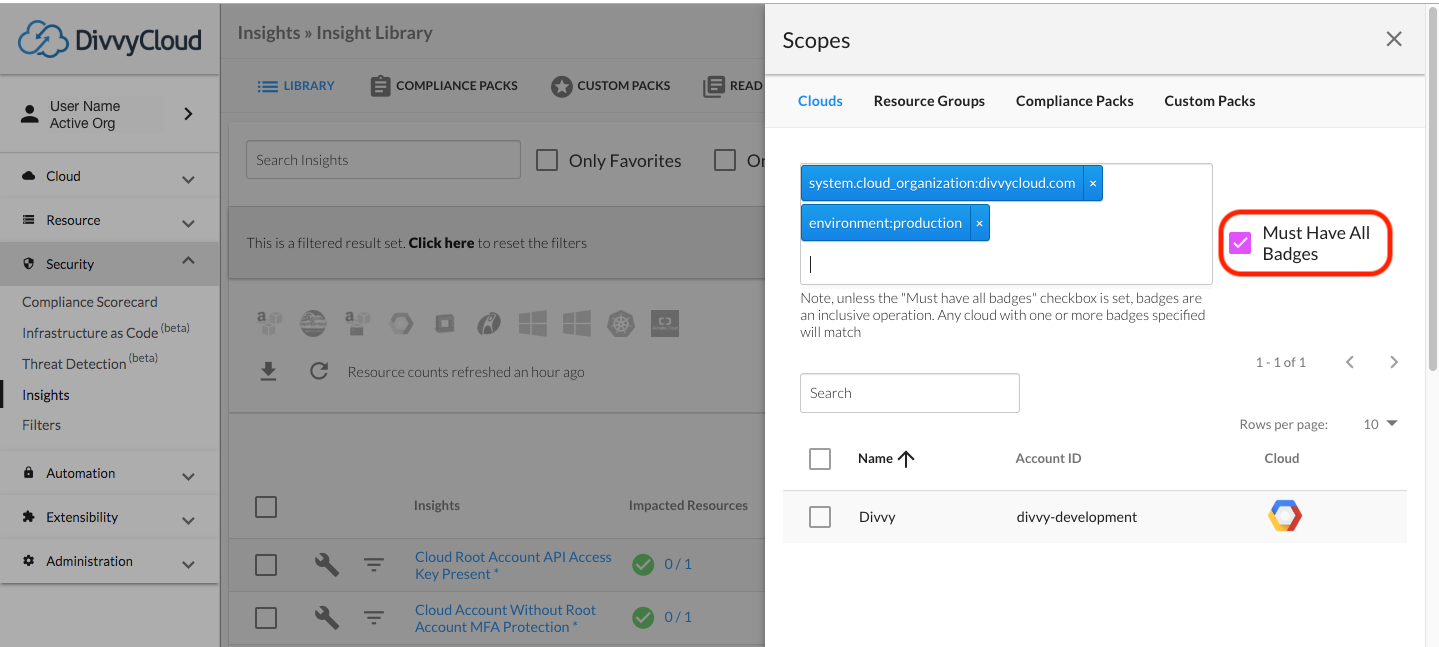

  1. As you select badges, both the list of clouds below your selections and the grayed-out results in the center of the window will dynamically change. By default, the results which appear are those which match at least one of the badges you select. To require that all badges must be matched for a result to appear, select “Must Have All Badges”.
Selecting "Must Have All Badges" for an Insight

Selecting "Must Have All Badges" for an Insight

  1. When you are finished filtering your insights, click the X at the top-right of the Scopes menu.

Scoping Resources With Badges

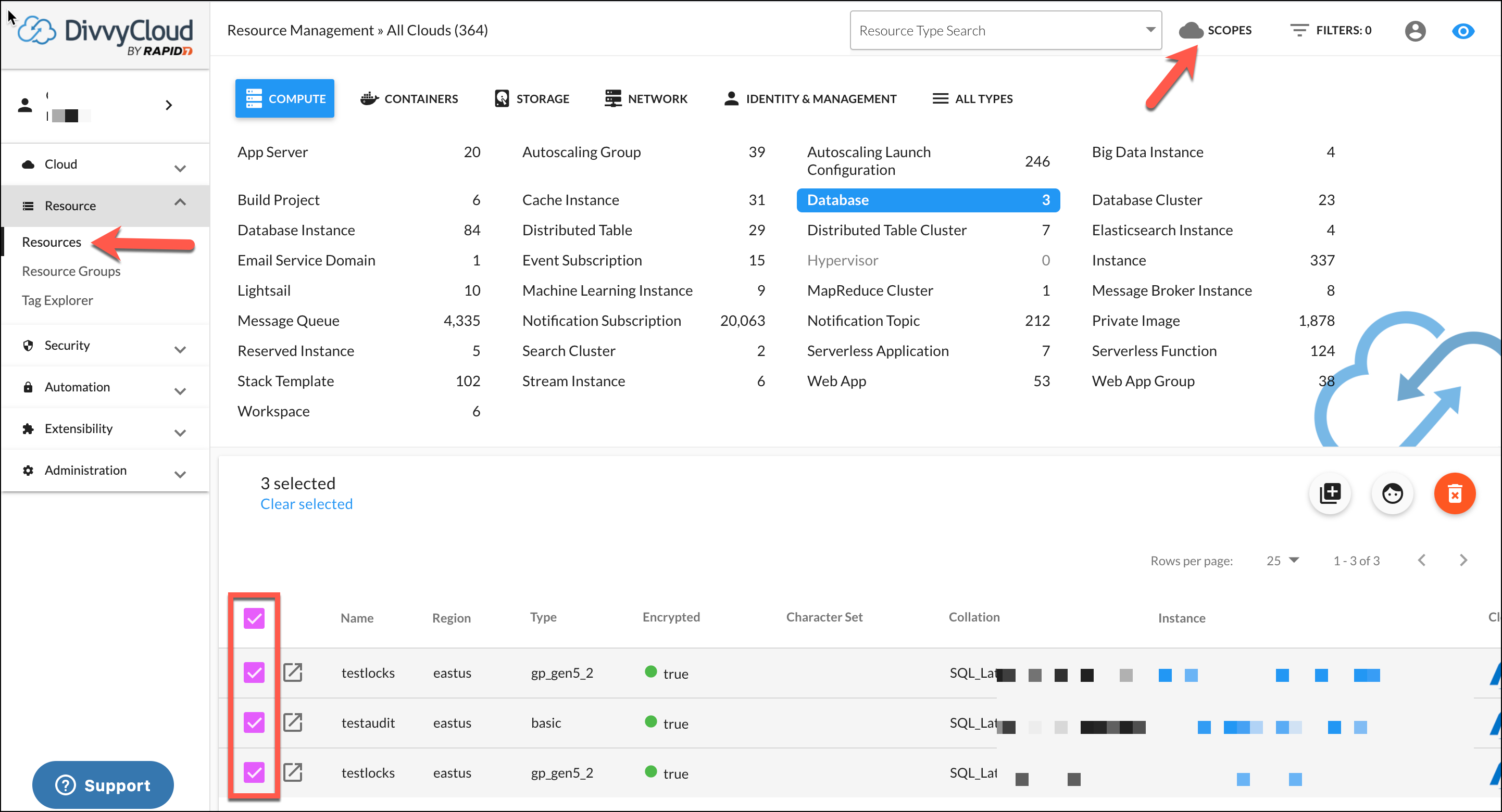

As with insights, resources may also be filtered by badges. The process by which you filter resources is identical to that by which you filter insights. Begin on the Resources page. Then refer to the instructions above for filtering insights with badges.

Scoping Bots With Badges

As with insights and resources, bots can be more precisely defined using badges. The process is similar to that used for scoping insights and resources with badges.

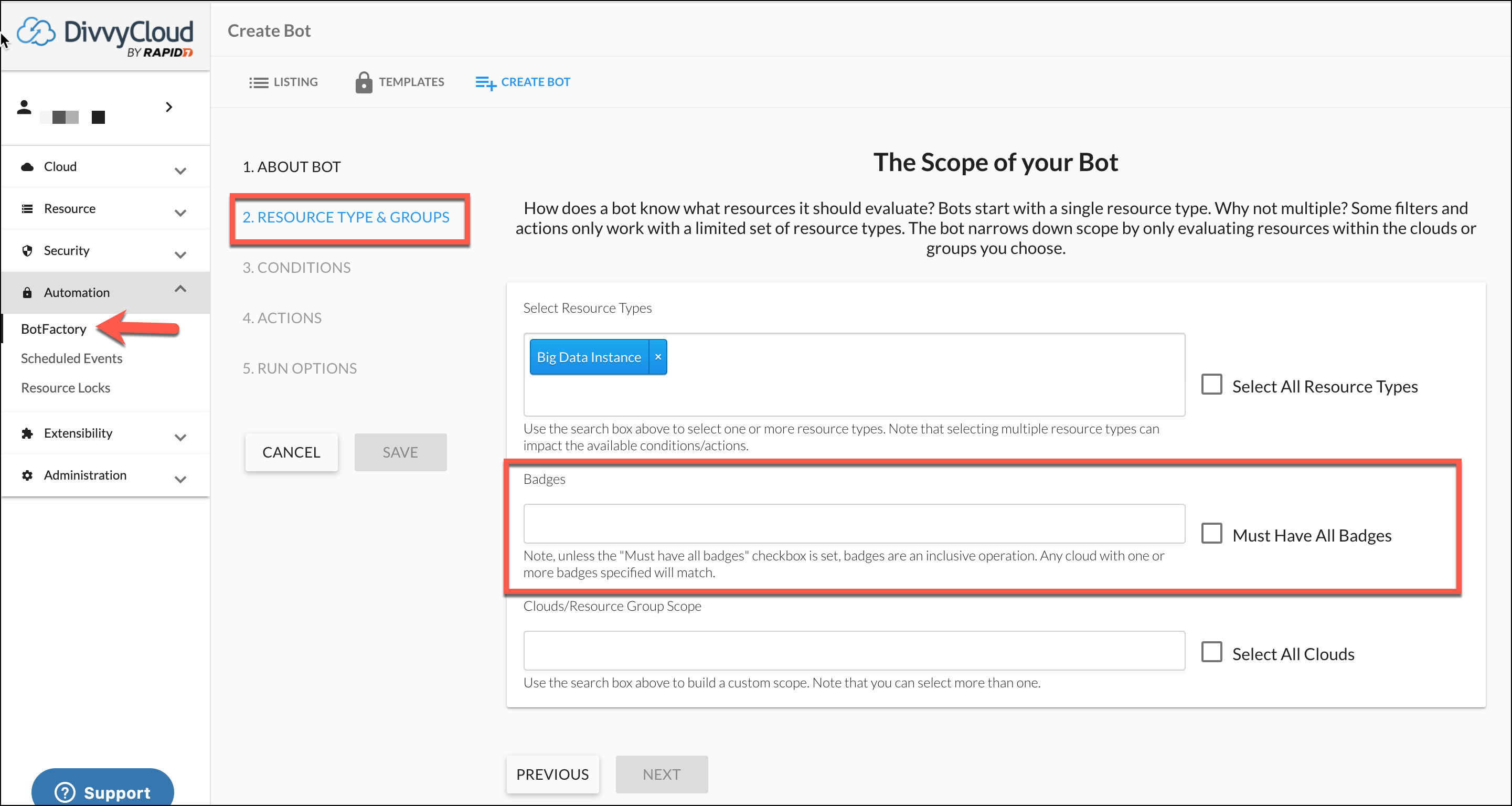

  1. While creating or editing a bot, under the “2. RESOURCE TYPES & GROUPS” section, you will see a text box with drop down selection and a “Must Have All Badges” checkbox identical to those seen in Insights and Resources. Select the badges to which you would like to limit your bot’s scope. You can check the “Must Have All Badges” checkbox to require that each included cloud have all selected badges, rather than at least one.
Scoping Bots with Badges

Scoping Bots with Badges

  1. When your changes are finished, you will see the list of clouds against which your bot will run in the box below your selected badges.

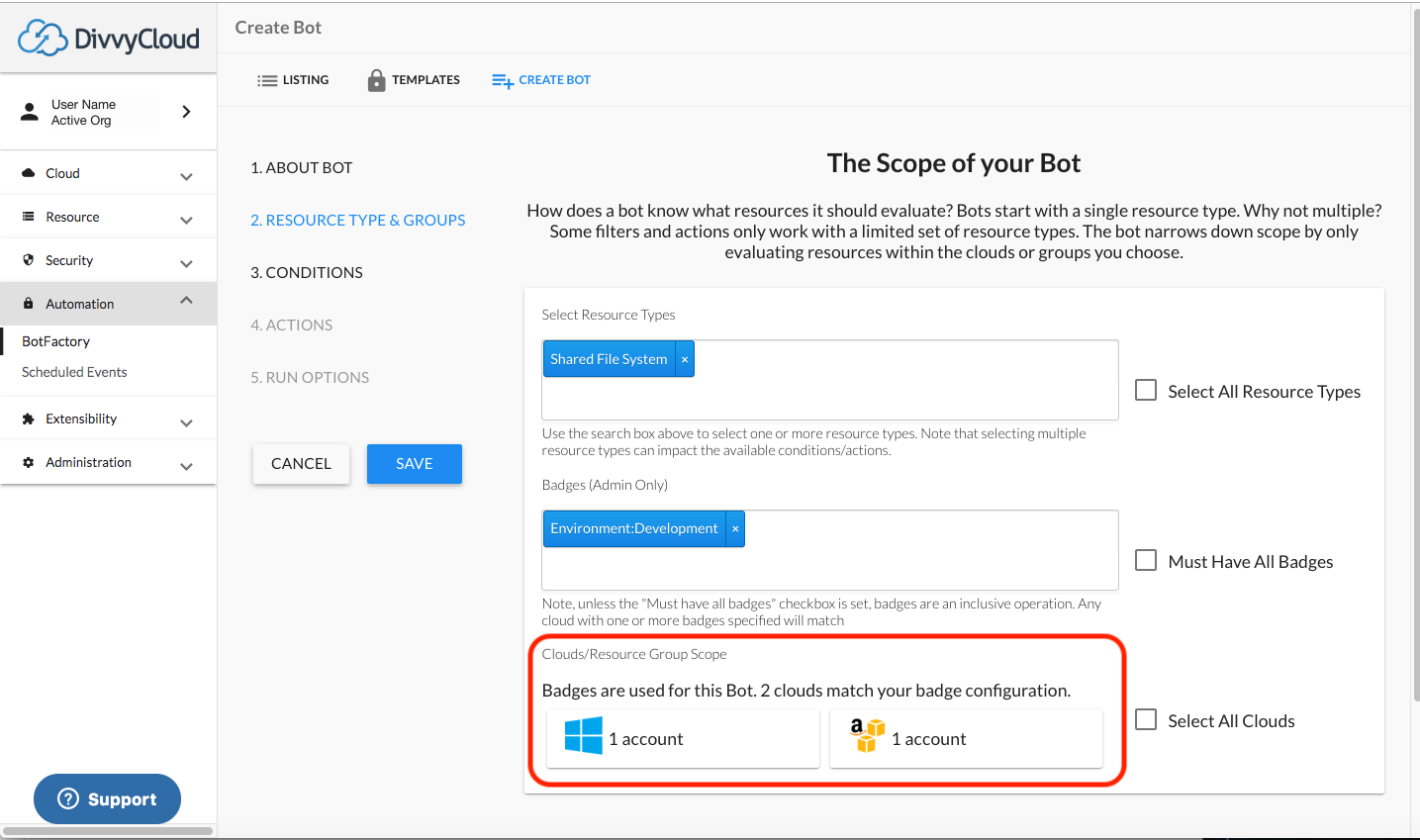

Viewing Bots Scoped by Badges During Bot Creation

Viewing Bots Scoped by Badges During Bot Creation

  1. When you are finished, continue creating/editing your bot as normal.

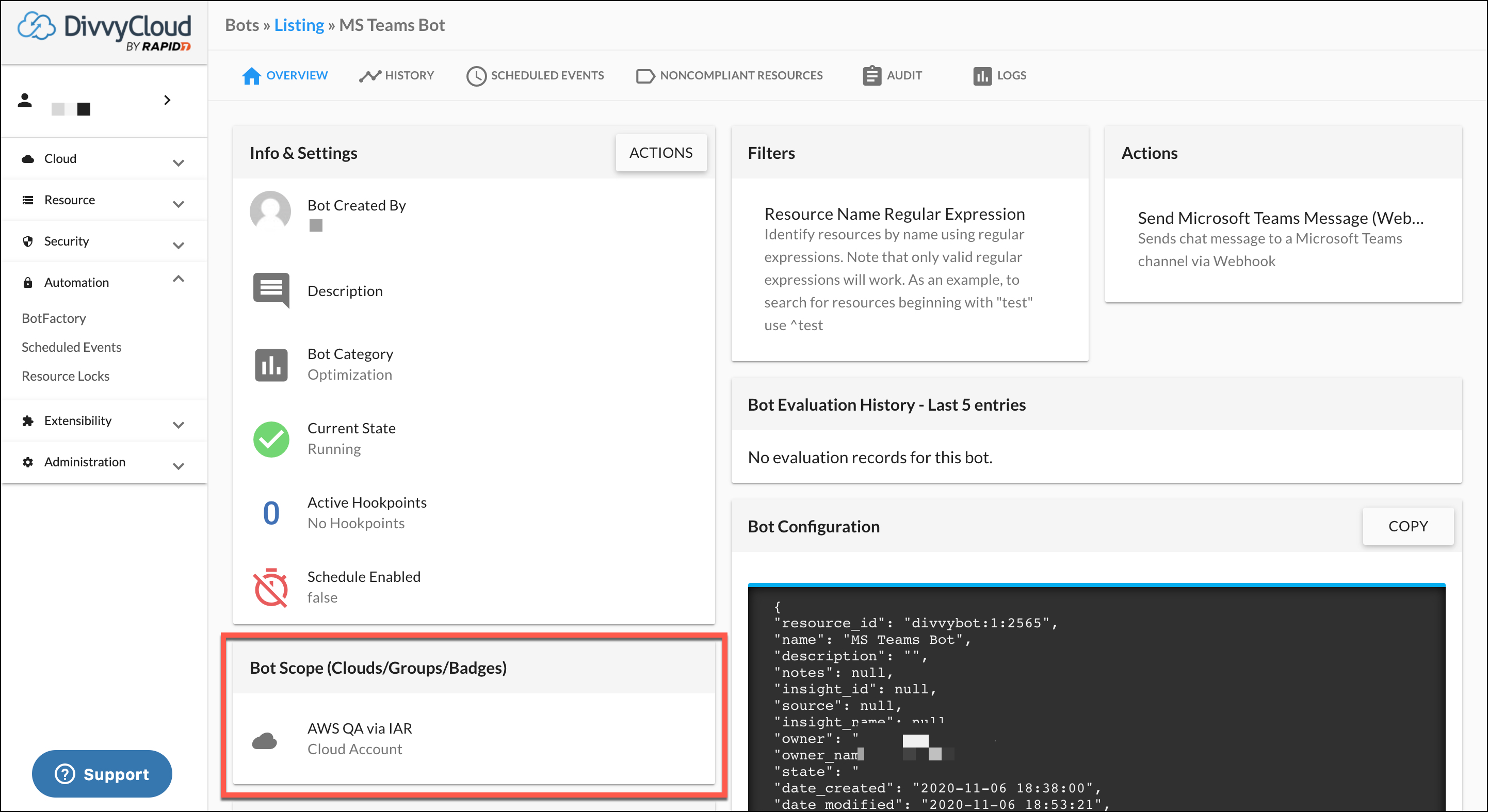

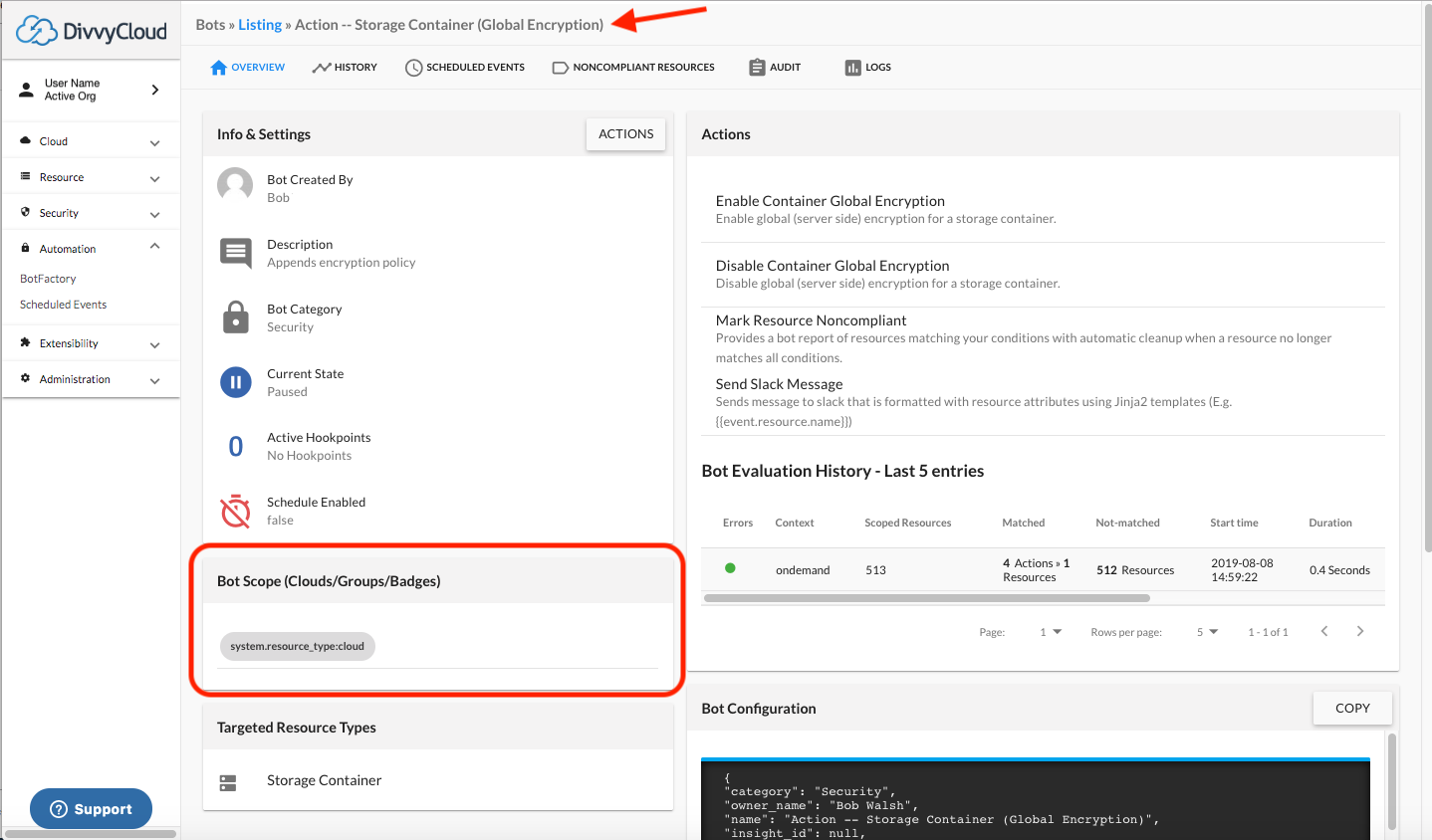

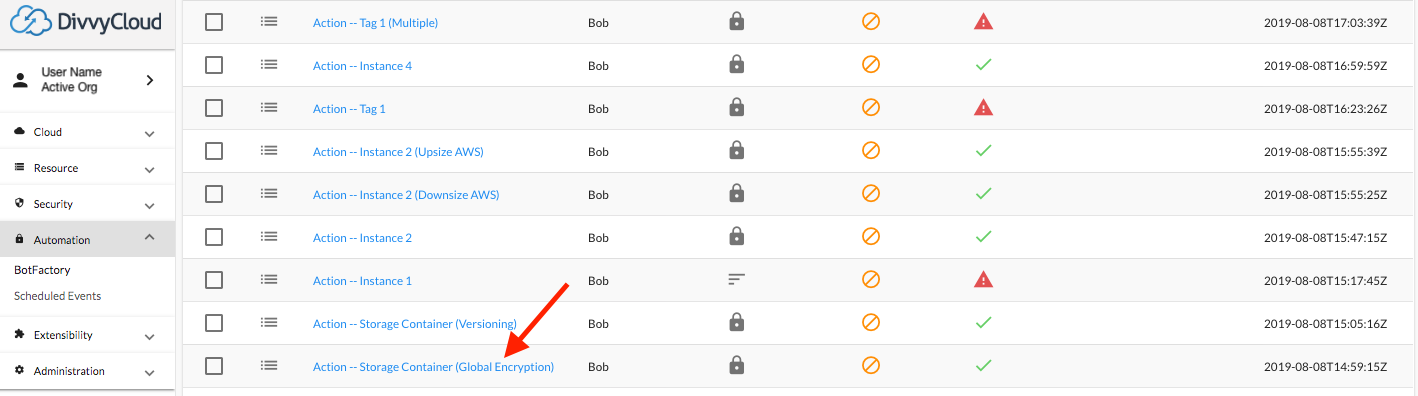

  2. To view which badges, if any, are in use for a given bot, select the bot of interest from your list of bots. You will find the badges in the “Bot Scope” panel.
Viewing Badges associated with Existing Bots

Viewing Badges associated with Existing Bots

Scoping User Roles With Badges

Role scopes may be associated with specific badges.

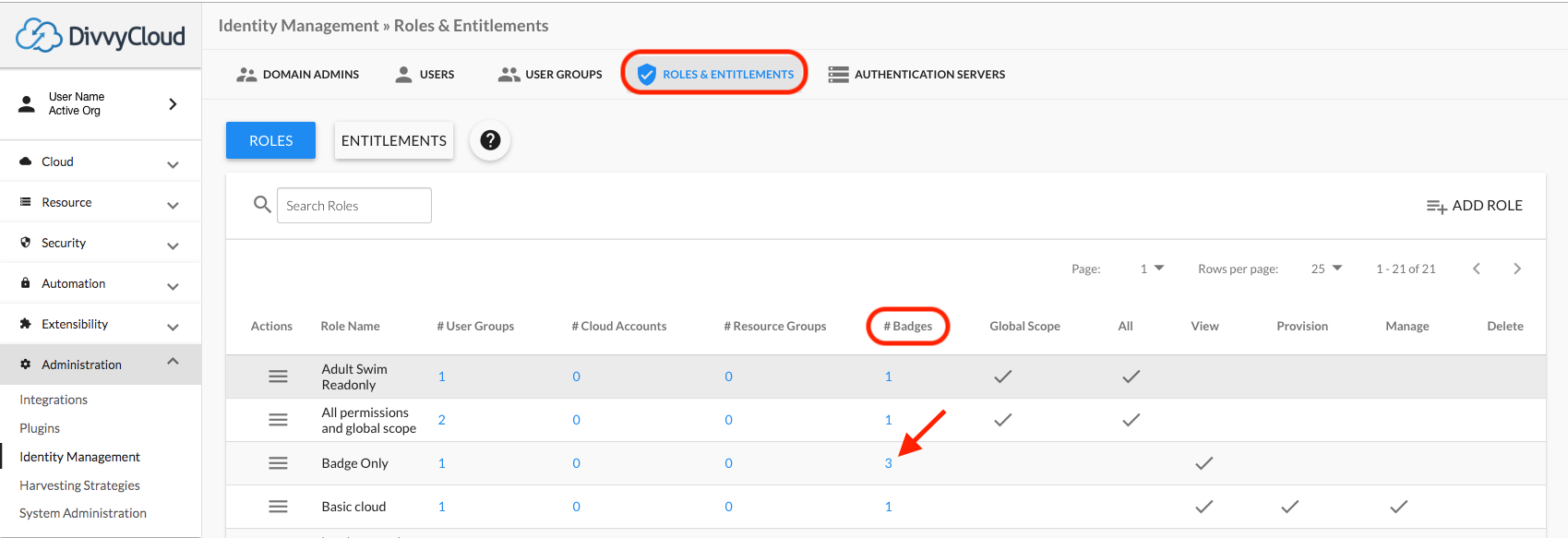

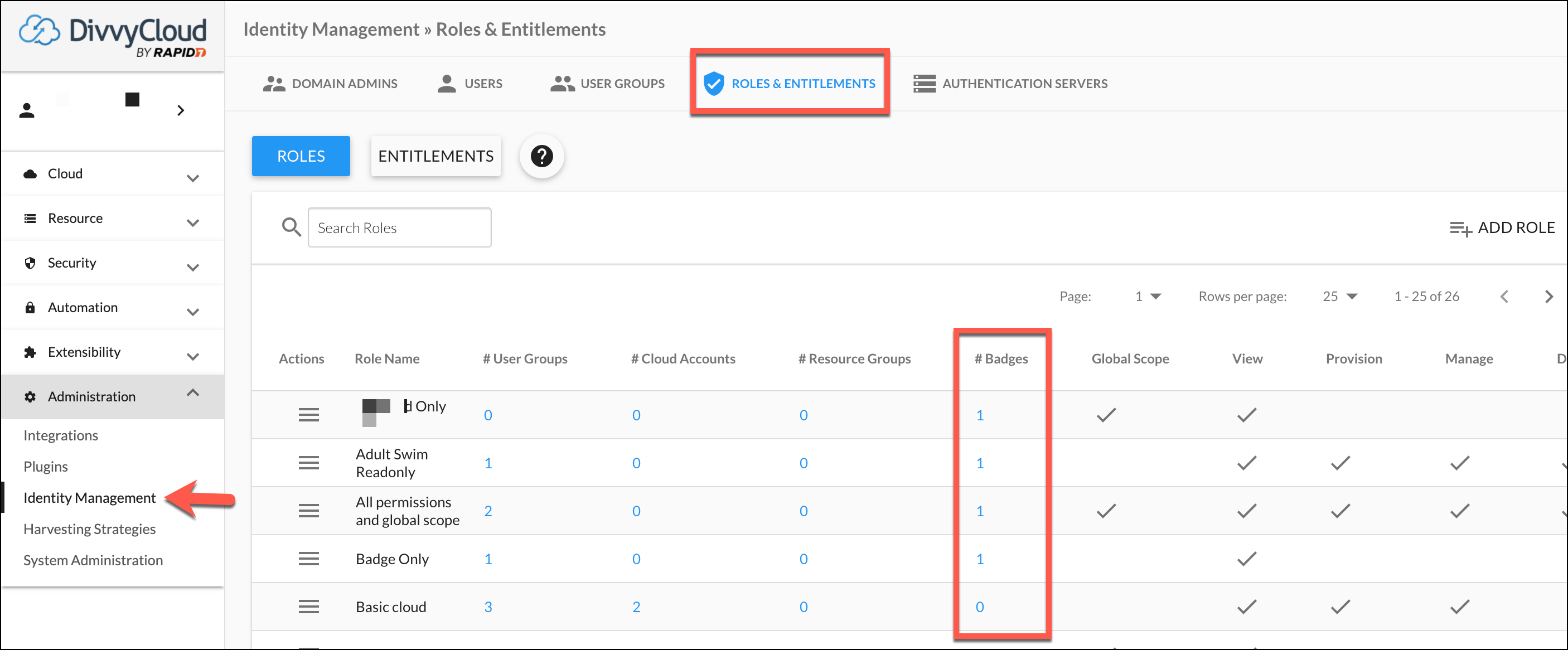

  1. On the Identity Management page, select the Roles tab. To add/remove a badge to/from a role, find the “# Badges” column for the role of interest. Click on the number in that column.
Viewing Badges Associated with User Roles

Viewing Badges Associated with User Roles

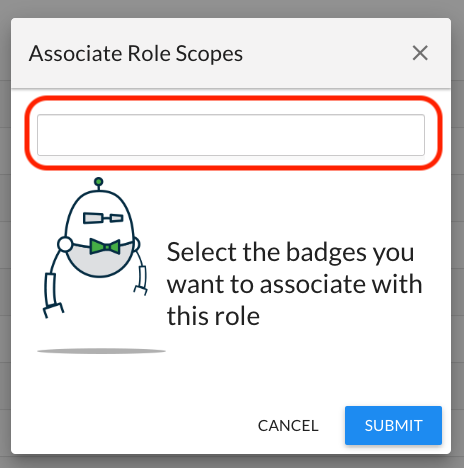

  1. To add a badge, use the “Associate Roles Scopes” dialog to click on the text input box. This displays a drop down list of all available badges. Click on the badges you want to add.
Adding Badges to a User Role

Adding Badges to a User Role

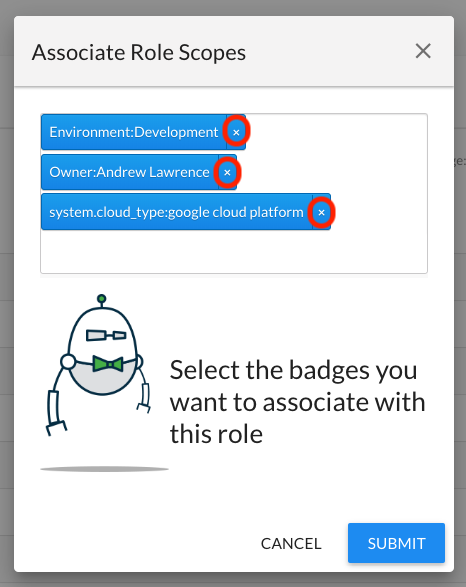

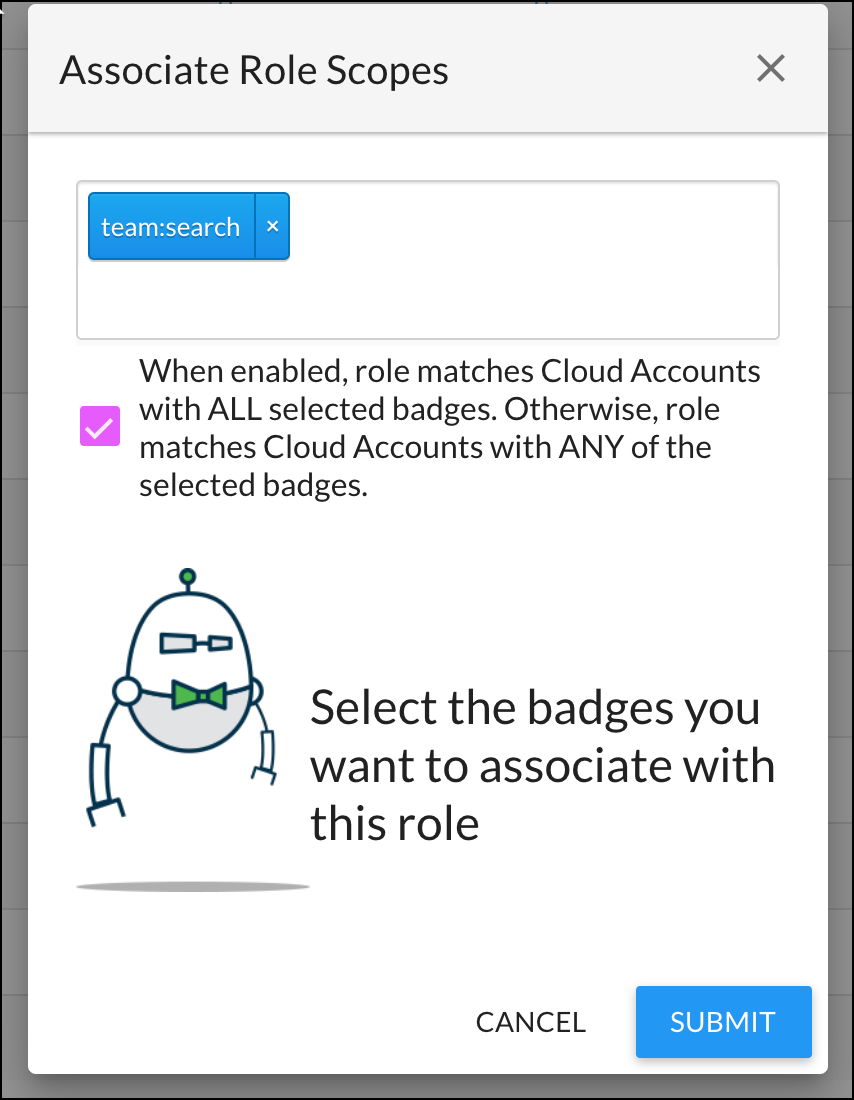

  1. To remove a badge from the role, click on the small x next to the badge’s name.
Removing Badges from a User Role

Removing Badges from a User Role

  1. When you finish adding and removing badges, click “Submit”.

Using Badges in Notification Messages

You can include badges and badging information in messages associated with any of the following bot actions: Send Bulk Email, Send Delayed Email, Send Slack Message, Send Hipchat Message, Post Request to URL, and Set Container Policy. To do so you will need to use Jinja2 Templating.

An Example

The following message uses Jinja2 templating and Slack formatting to send an alert via Slack when a resource is created without tags mandated by policy:

A resource of type `{{event.resource.get_resource_type()}}` was discovered
at `{{event.resource.common.creation_timestamp}}` without the required _owner_
or _contact-email_ tags. The resource name is `{{event.resource.get_resource_name()}}`.
It lives in account `{{event.resource. get_organization_service_name()}}`,
which is owned by {{event.resource.get_badge_value_by_key_for_parent_cloud('owner')}}`.\n---

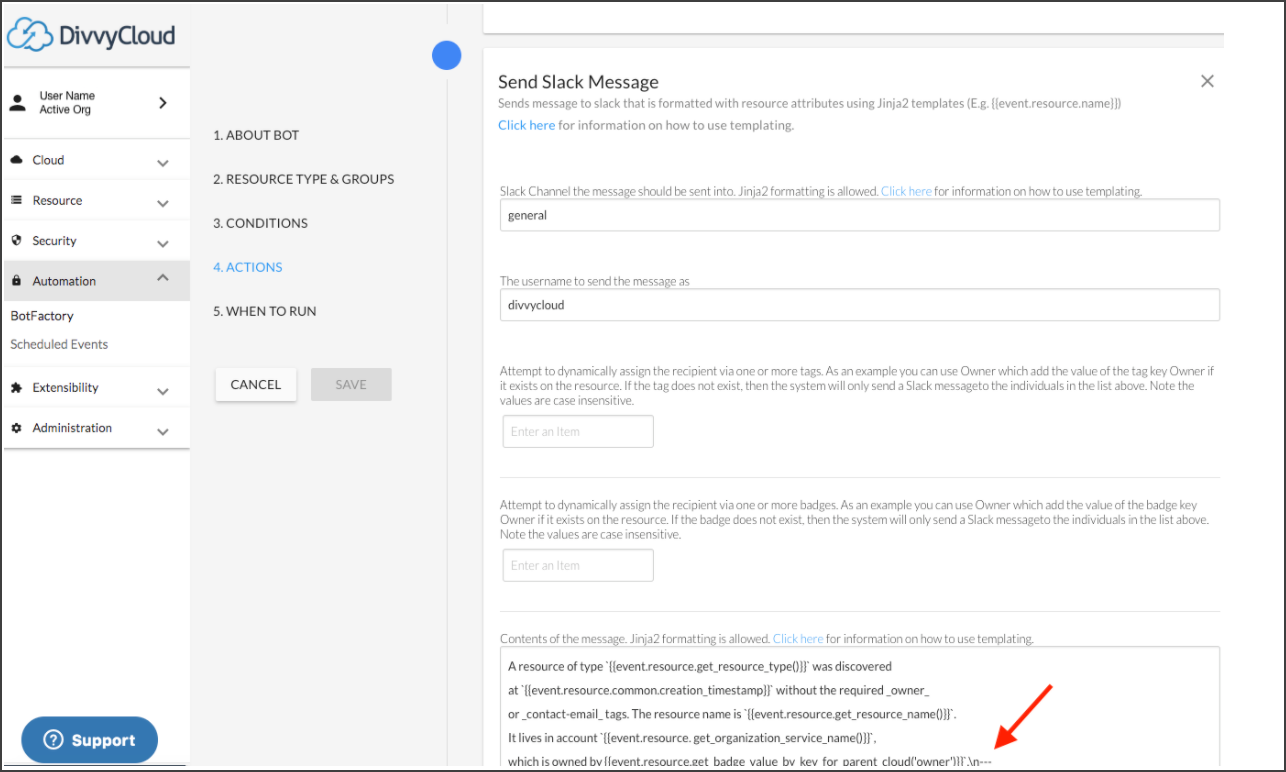

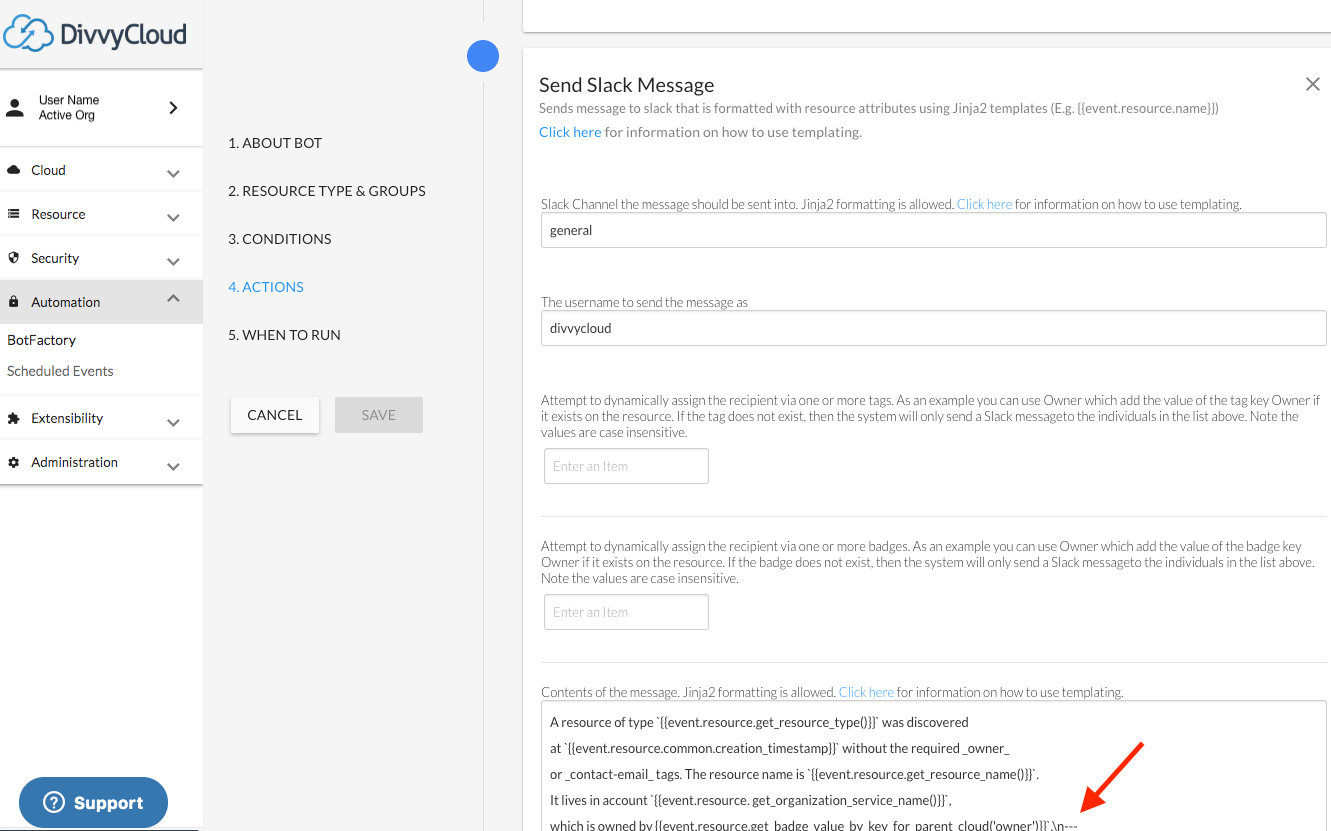

Example: Using Badges to Send a Slack Message

Example: Using Badges to Send a Slack Message

Suppose a given cloud has a badge of owner and the owner for this cloud is Jane Doe. Then the value returned in the example above for {{event.resource.get_badge_value_by_key_for_parent_cloud('owner')}} will be jane.doe@acme.com.

For more information on Jinja2 templating, click here.

Viewing the Badges Summary Report

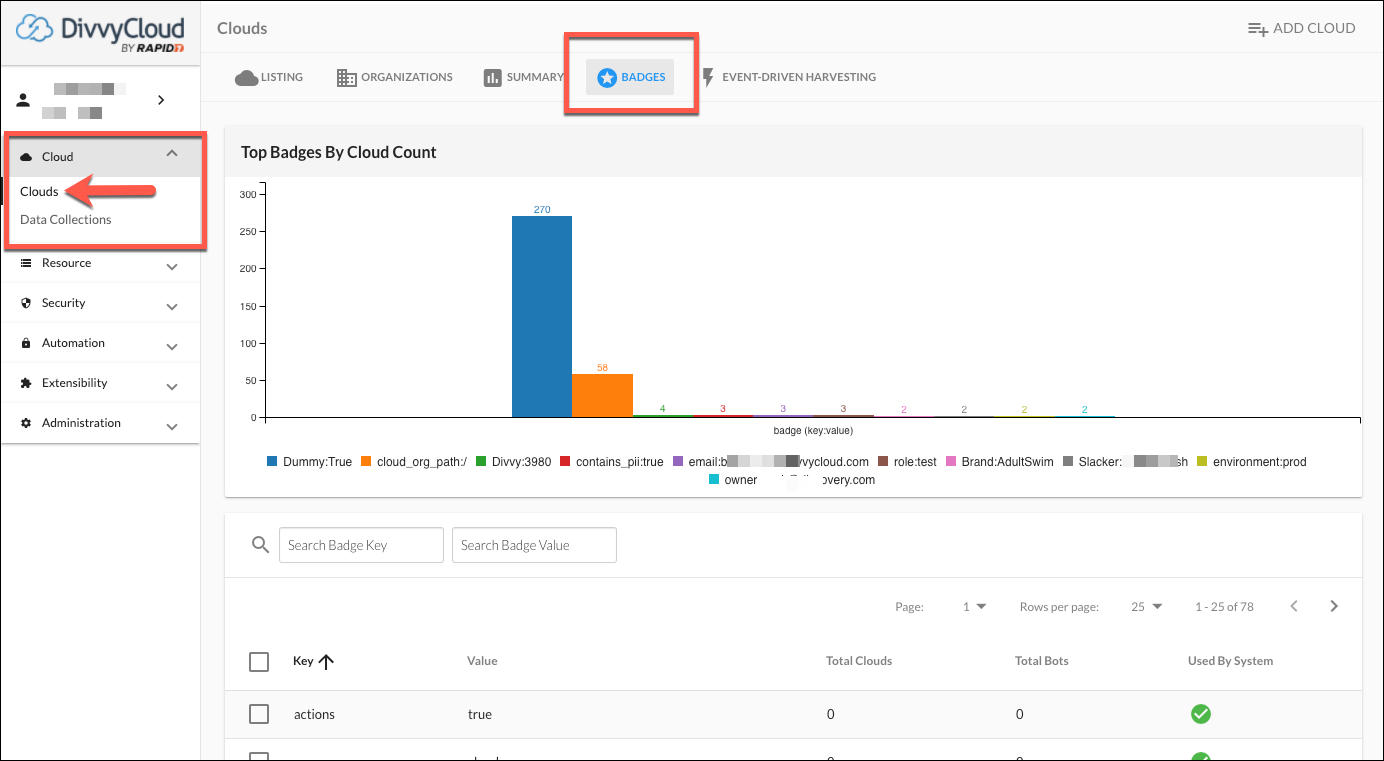

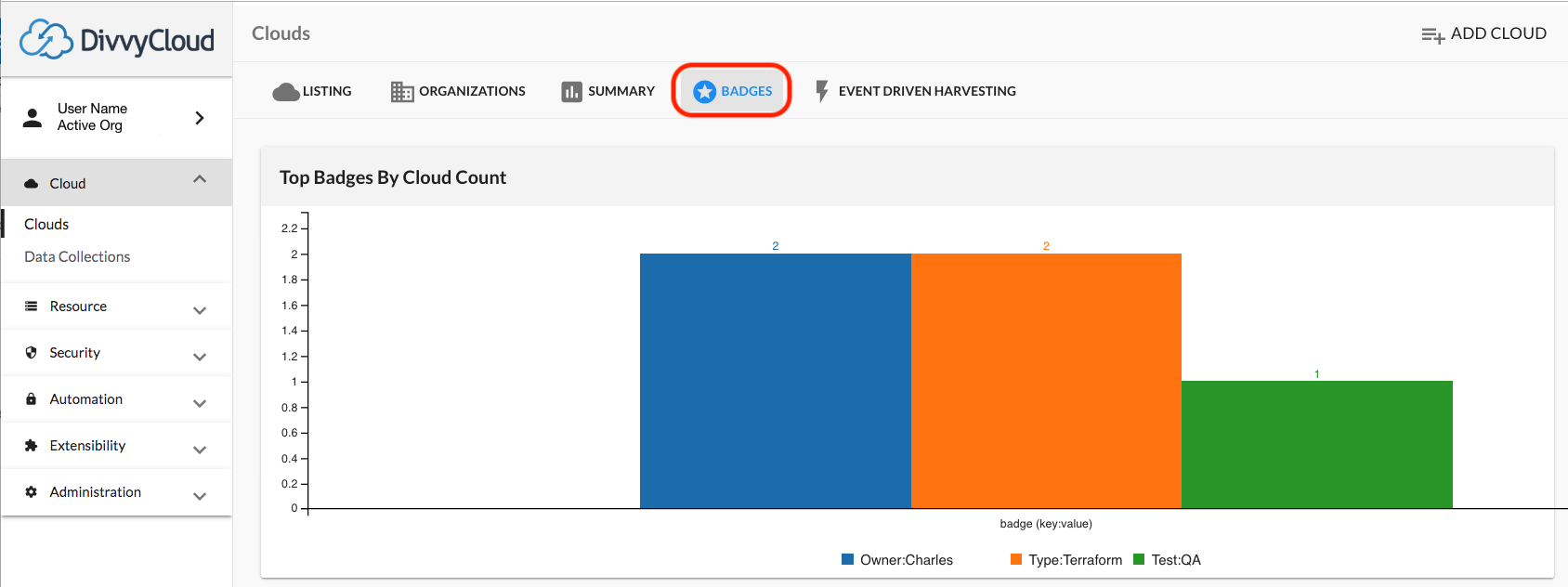

With 'Viewing' permissions, you can view Total Badges by Cloud Account by selecting the Badges tab from the Clouds main page. This view summarizes your top 10 badges by cloud account in a bar graph, and details all badges in use in the table below the bar graph. Together, these two displays effectively provide a dictionary of your top badges. A Domain Admin can use these displays to manage available badges.

Top Badges by Cloud Count

Access to the Top Badges by Cloud report (as well as the listing of all Badges) is through the Badges option on the Clouds main page. This information is available only to users with appropriate permissions.

Domain Admin Privileges Required

You must have Domain Admin privileges to view the summary of badges by cloud account.

Summary of Badges by Cloud Account (Domain Admins)

Summary of Badges by Cloud Account (Domain Admins)
