Self-Hosted AWS Cloud Setup - Single Cloud

Integrating a Single AWS Cloud Account with the Self-Hosted Version of InsightCloudSec

Once your InsightCloudSec instance is up and running the first thing you'll want to do is integrate an AWS cloud account to take advantage of the security Insights that apply to your cloud footprint.

🚧

Deployment Method Assumptions

These instructions assume that you have deployed InsightCloudSec to AWS using the recommended production deployment method: AWS - EC2 or ECS Fargate - Terraform. If your deployment method was different, reach out to the support team through the Customer Support Portal.

If you need to add multiple accounts grouped under an AWS organization to a Self-Hosted version of InsightCloudSec, review Self-Hosted AWS Cloud Setup (Organizations).

Setup Overview

For InsightCloudSec to securely access the information contained within your AWS cloud account, you'll need to create and setup a role, policy, and trust relationship. Review AWS' IAM documentation for more information on these concepts. To achieve proper harvesting for InsightCloudSec, you will complete the following within your AWS and InsightCloudSec environments:

  • Step 1: Generate an External ID -- Login to InsightCloudSec and generate a unique External ID that will be associated with the trusted entity used to harvest data in your AWS Cloud Account.

  • Step 2: Setup Cloud Account -- Use the provided CloudFormation Template to create a policy for harvesting your AWS resources. This policy will be attached to a role with an External ID (provided to you by InsightCloudSec) that designates your unique InsightCloudSec role as a trusted entity.

  • Step 3: Configure InsightCloudSec -- Setup your AWS cloud account harvesting within InsightCloudSec and begin receiving resource data.

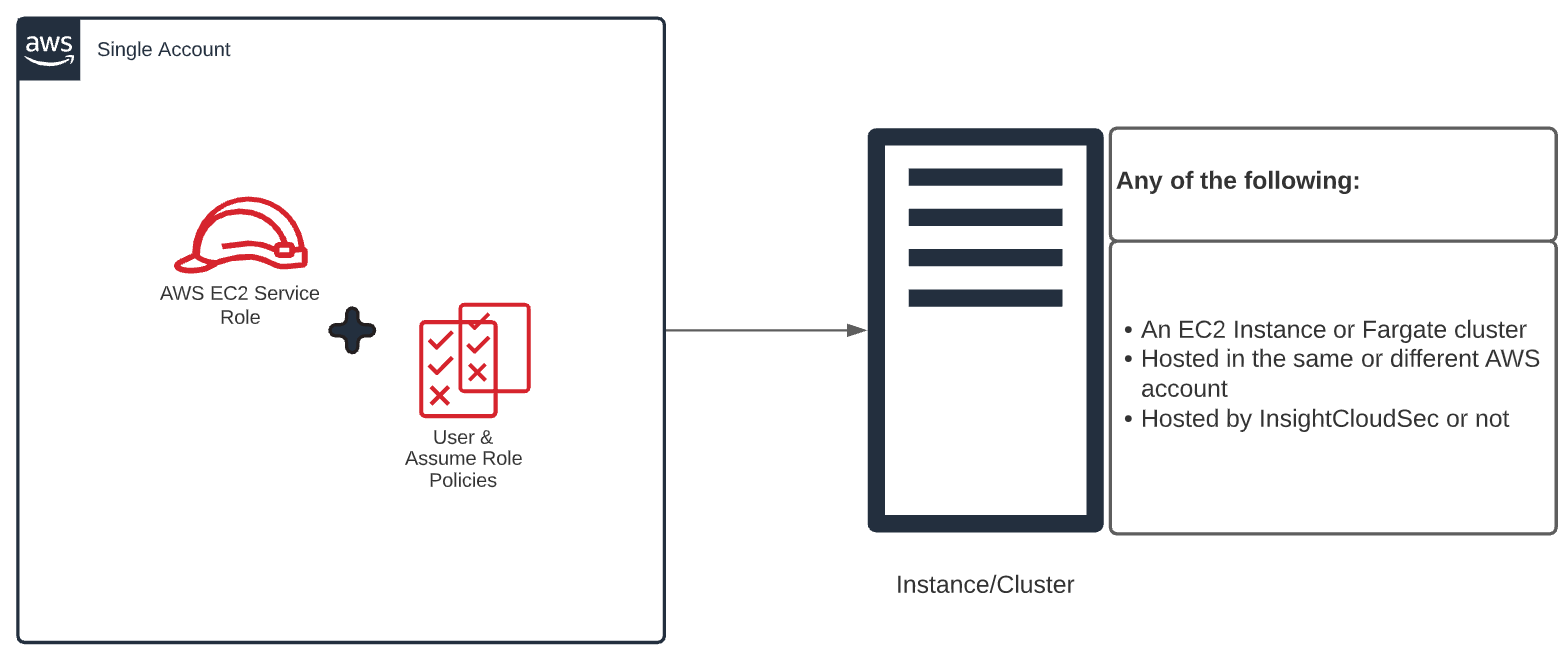

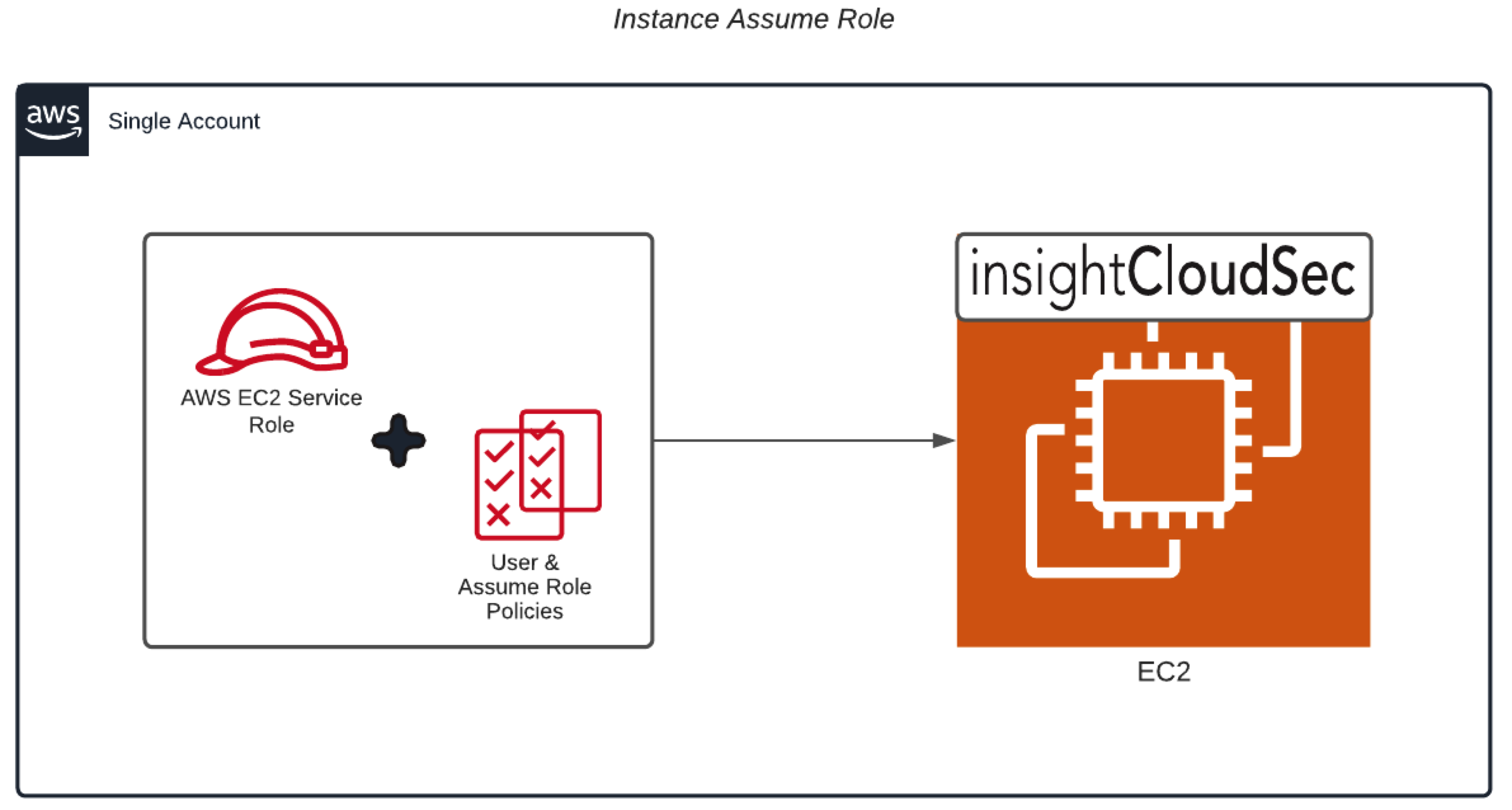

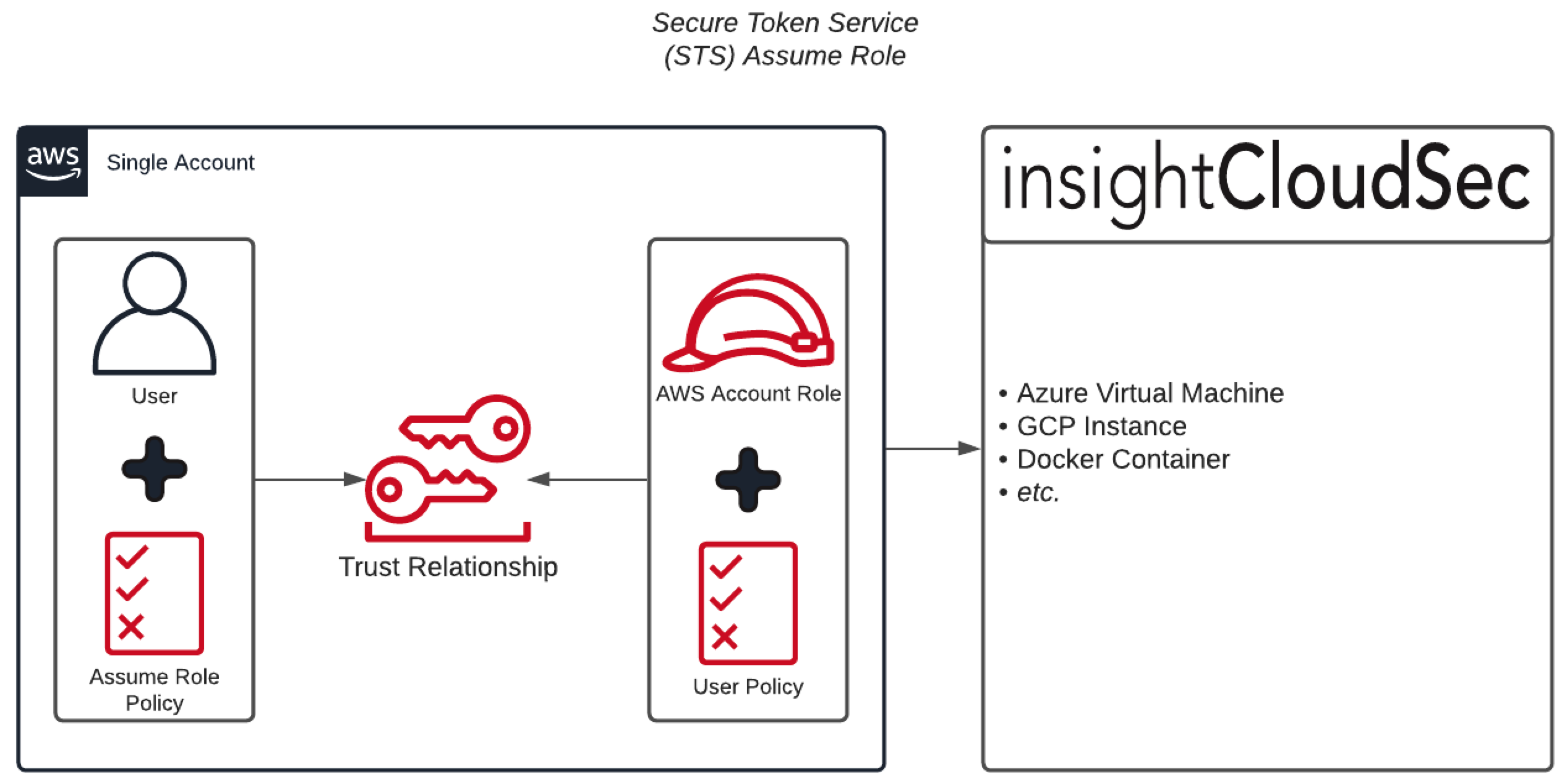

The diagram below outlines the setup required:

12191219

AWS Cloud Setup Overview for Self-Hosted versions of InsightCloudSec

Prerequisites

📘

Value Names (DivvyCloud vs. InsightCloudSec)

Some components use our former product name (DivvyCloud vs. InsightCloudSec). Updates to the naming of these components will be communicated when changes are made, but note that the name difference does not affect setup or functionality within the product.

Before you configure anything in your AWS environment, you'll need the following:

  • Admin access to the AWS cloud account you want to harvest
  • The unique Amazon Resource Name (ARN) for your InsightCloudSec instance. Your unique InsightCloudSec ARN should look something like this: arn:aws:iam::123456789123:role/DivvyCloud-Install-Role, with the 12-digit account ID value being replaced with the ID of the account where InsightCloudSec is hosted
    • Note: If you followed the AWS - EC2 or ECS Fargate - Terraform deployment instructions, this role will be created automatically alongside the InsightCloudSec instance inside the desired account.
  • Domain Admin permissions within InsightCloudSec
  • InsightCloudSec IAM CloudFormation Templates (CFTs) (see below) and the permissions to use & implement CFTs

Note: We recommend that you review the documentation on AWS Additional Configuration, particularly the additional steps to support Opt-in regions.

CloudFormation Templates

🚧

Using CFTs

If you are unwilling or unable to use the CFTs required for setup, contact the support team through the Customer Support Portal.

Our team maintains the following template to help automate policy and role setup for your cloud account:

Step 1: Generate an External ID

An External ID is generated for your specific InsightCloudSec organization when you initiate the process to add a cloud account within InsightCloudSec. The External ID will be the same for every individual cloud account or AWS Organization.

This process supports AWS best practices and prevents the confused deputy problem from occurring. The confused deputy problem is a security issue where an entity that doesn't have permission to perform an action can coerce a more-privileged entity to perform the action.

1. Login to your InsightCloudSec platform and click "Clouds" in the left-hand navigation menu.

  • Click "Add Cloud" in the top right-hand corner.
  • Click "Amazon Web Services".
16001600

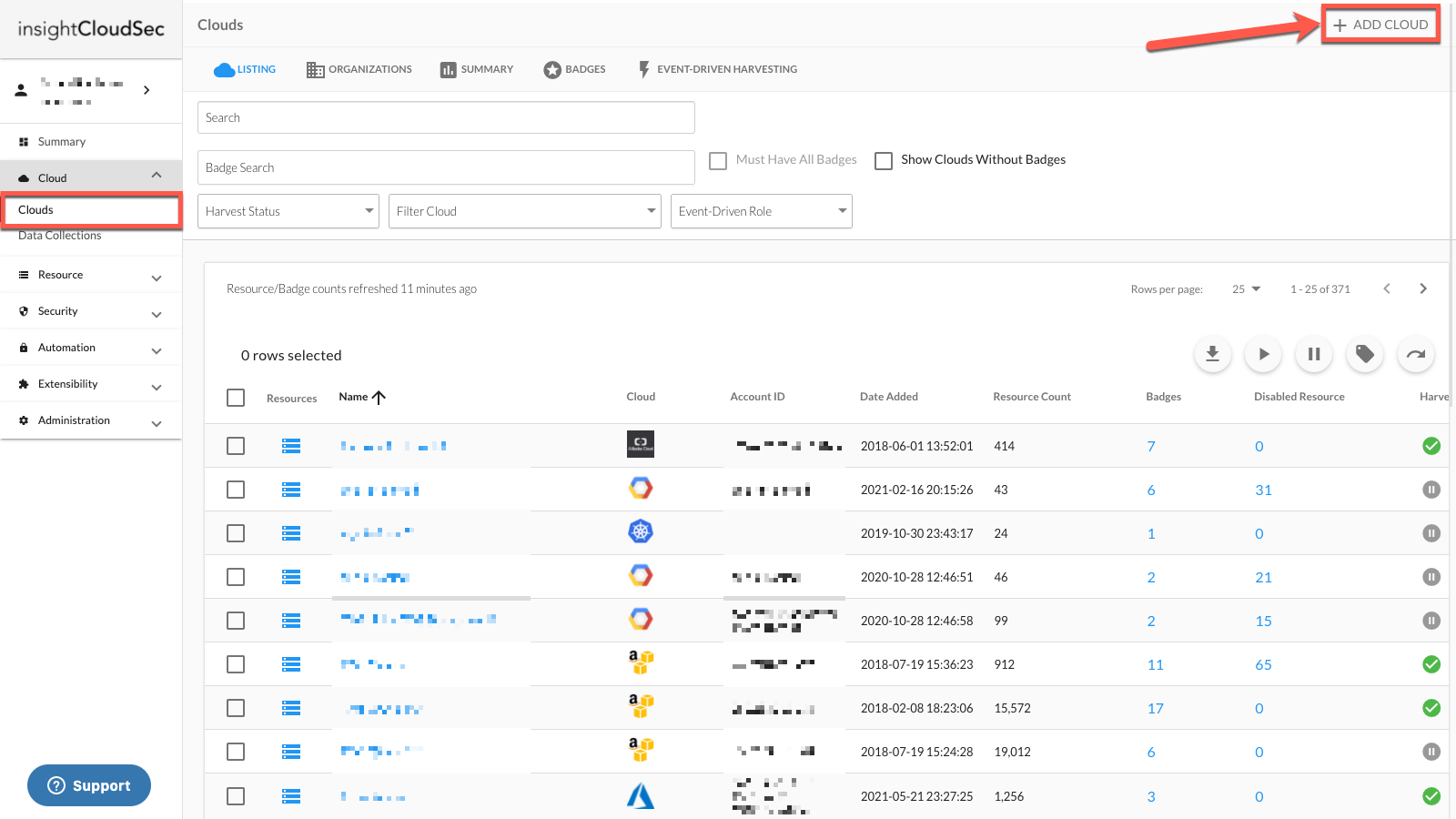

Add Cloud

2. Click "Instance Assume Role", then provide a nickname for the account. This creates a system Badge containing the nickname that can be searched or referenced throughout InsightCloudSec.

3. Under Account Details locate and copy the External ID and keep it on hand for the next step where you will be creating a role.

  • Keep this browser window open, as you'll return to this setup page in step 3.
16001600

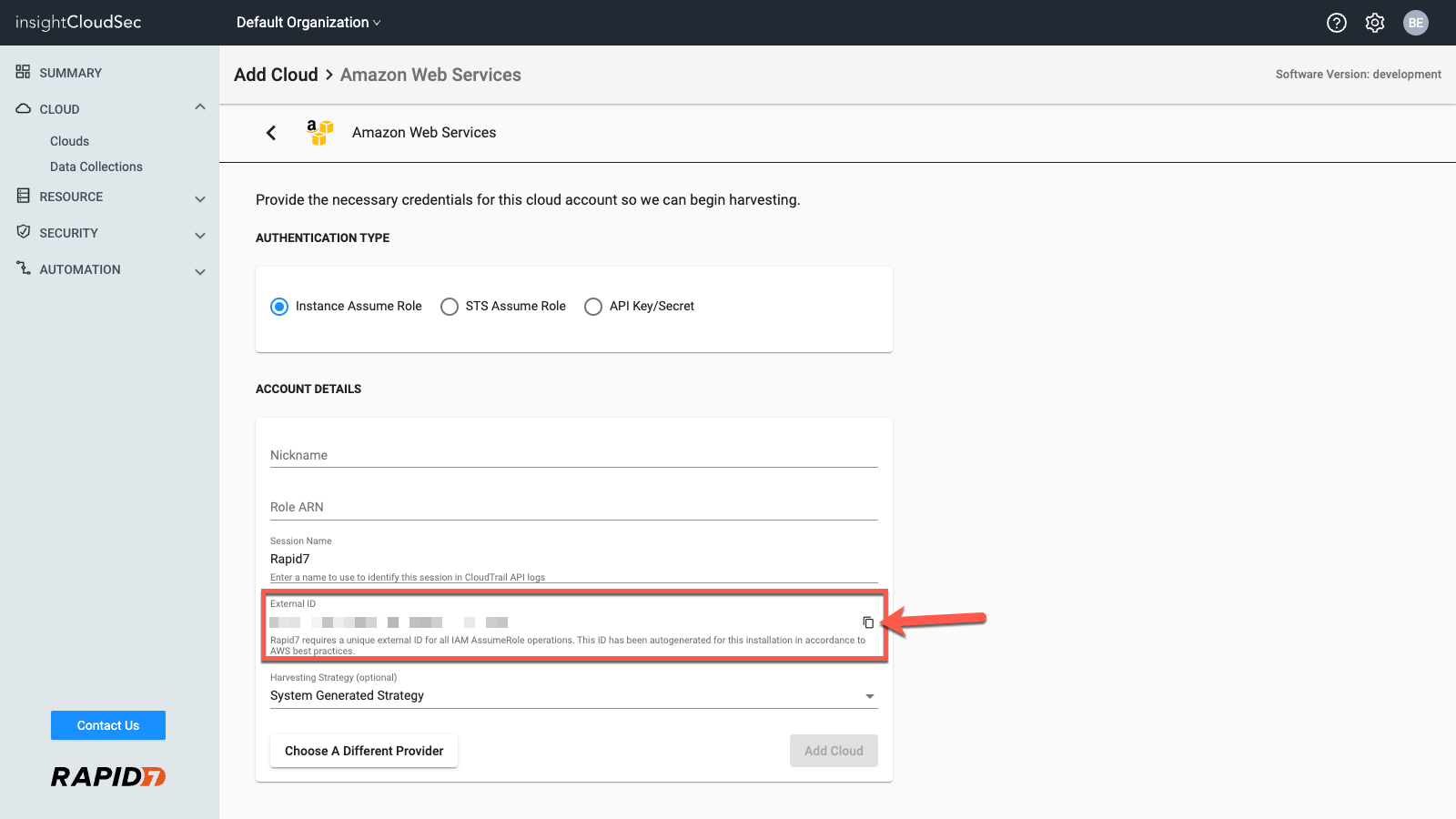

Generated External ID

Step 2: Setup Cloud Account

Setting up your AWS cloud account is straightforward -- the account that contains resource data you want to harvest for InsightCloudSec will need a harvesting role and policy attached to it. The relevant CFT for this setup will configure the desired cloud account.

🚧

Prerequisites

Before you can successfully create a harvesting role/policy, you will need the following on hand:

  • The External ID associated with the InsightCloudSec organization (generated in step 1)

1. Login as an Admin to the AWS account you want to harvest and access the CloudFormation service.

  • This service can be found on the Services main page under Management & Governance. You can also enter "CloudFormation" into the search bar.
  • From the CloudFormation dashboard, click "Stacks" in the left-hand menu.

2. In the top right corner of the Stacks table, click "Create stack --> With new resources (standard)".

3. Configure the template.

  • Click "Template is ready".
  • Click "Amazon S3 URL".
  • Input the Harvest Member Role CFT URL: https://s3.amazonaws.com/get.divvycloud.com/cft/Divvy-CFT-IAM-Harvest-Role-Member.yaml
  • Click "Next".
15981598

Uploading the Member Harvest Role StackSet

4. Specify stack details.

  • Provide a name for the Stack.
  • Edit the parameters:
    • Select the "Standard-Managed (read only, AWS managed)" Harvest role type. Review AWS-Managed Supplemental Policy for more information about this policy.
    • Optionally, update the default role and/or policy name.
    • Input the unique Amazon Resource Name (ARN) for your InsightCloudSec instance. Your unique InsightCloudSec ARN should look something like this: arn:aws:iam::123456789123:role/DivvyCloud-Install-Role, with the 12-digit account ID value being replaced with the ID of the account where InsightCloudSec is hosted
      • Note: If you followed the AWS - EC2 or ECS Fargate - Terraform deployment instructions, this role will be created automatically alongside the InsightCloudSec instance inside the desired account.
    • Select "Yes" to create an external ID, then provide the external ID generated in step 1)
  • Click "Next".
15991599

Specifying the Member Harvest Role Details

5. Configure stack options.

  • Optionally, provide tags to help identify the stack and/or update the execution configuration.
  • Optionally, provide an IAM admin role to perform all the operations in the Stack within your account(s) and adjust the IAM execution role name as necessary.
  • Optionally, update the stack failure and/or advanced options.
  • Click "Next".

6. Review and create the stack.

  • Review the Stack's configuration to ensure everything is accurate.
  • Acknowledge the warning about IAM capabilities toward the bottom of the page.
  • Click "Submit".
  • Verify the Stack is created successfully.

Step 3: Configure InsightCloudSec

Now that the AWS account has been configured for harvesting, it's time to enable harvesting within InsightCloudSec.

🚧

Prerequisites

Before you can successfully add an account to InsightCloudSec, you will need the following on hand:

  • The ARN for the account harvesting role (created in step 2)

1. Return to your InsightCloudSec platform and the in-progress cloud account setup page.

2. Provide credentials for harvesting the account's data.

  • Provide a nickname for the account. This creates a system Badge containing the nickname that can be searched or referenced throughout InsightCloudSec.
  • Provide the Role ARN for the harvesting role (created in step 2)
  • Provide a session name.
    • The session name is what will display in any CloudTrail logs and is useful for auditing purposes.

3. Optionally, select a Harvesting Strategy.

4. Click "Add Cloud".

16001600

Add Cloud

After successful submission, a background job is enqueued that will fetch and synchronize all of your accounts. Depending on the number of accounts this will take a few minutes. At this point, you have the option of validating the permissions on the provided harvesting role to ensure successful harvest, adding cloud Badges, adding another cloud, or returning to the Clouds page.

14001400
